1. Introduction

Section titled “1. Introduction”

Thank you for purchasing the HaritoraX 2.

Please read this manual carefully, follow the precautions, and enjoy a correct and safe FBT (Full Body Tracking) life.

Please make sure to read [Safety Instructions/Consignes de sécurité/Sicherheitshinweise/Istruzioni di sicurezza/Instrucciones de seguridad] before using.

※HaritoraX 2 does not require Bluetooth pairing operation with a PC. It may not be possible to connect, so please do not pair it.

2. Setup Guide

Section titled “2. Setup Guide”

If you set up according to the procedure, you can use HaritoraX 2 right away.
Video : Initial setup tutorial

Easy Setup Guide

  • STEP 0

First, check the button positions and names in “Name of sensor parts”.

  • STEP 1

Assemble the sensor and strap while watching the video below.
After assembly, turn on the power by pressing the main button of each sensor for 3 seconds and put on the sensor to the body.

Video: How to assemble and put on the strap

  • STEP 2

Download the dedicated software “Shiftall VR Manager” from Steam platform.

  • STEP 3

Please set up “Shiftall VR Manager” and each part.
Please check this link to view the Online manual of “Shiftall VR Manager”.

Shiftall VR Manager Online ManualWhen using the GX dongle, please refer to the GX6/GX2 online manual to switch the communication mode before use.

That’s all. HaritoraX 2 is ready now.

3. Preparation / Before You Use

Section titled “3. Preparation / Before You Use”

3.1 Requirements

Section titled “3.1 Requirements”

To use HaritoraX 2, you need it.

  • A Windows 10(64 bit) or 11 PC that is necessary to work with SteamVR 2.8.8 or later and  has a Bluetooth connection function
    Click here for a list of Bluetooth adapters that have been tested for compatibility.
  • VR headset that able to connect to SteamVR

Click here for a list of VR headsets that have been tested to work.

  • USB charger with output of 5V/2.0A or more per port

3.2 Included items

Section titled “3.2 Included items”
Sensor6
Strap6
Cable Fixing Strap2
USB Cable for Charging
(For HaritoraX 2 / Wireless only)		1
LiDAR sensor angle adjustment spacer2
Safety Precautions/Warranty1

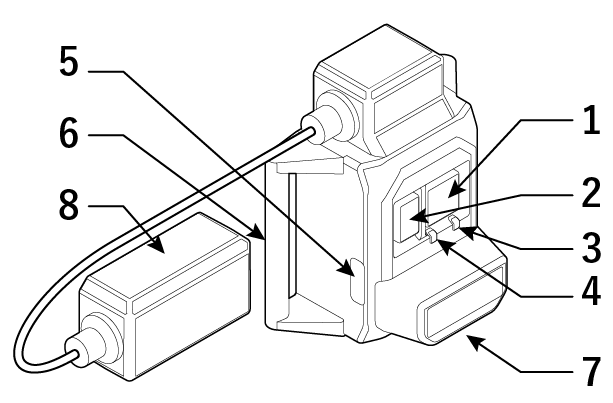

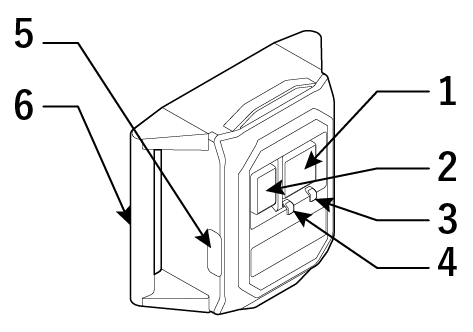

3.3 Name of sensor parts

Section titled “3.3 Name of sensor parts”

This is the name of each part of the sensor attached to the body.

  1. Main button
  2. Sub button
  3. Red LED
  4. Green LED
  5. USB port for charging
  6. Belt loop
  7. LiDAR sensor
  8. Knee sensor

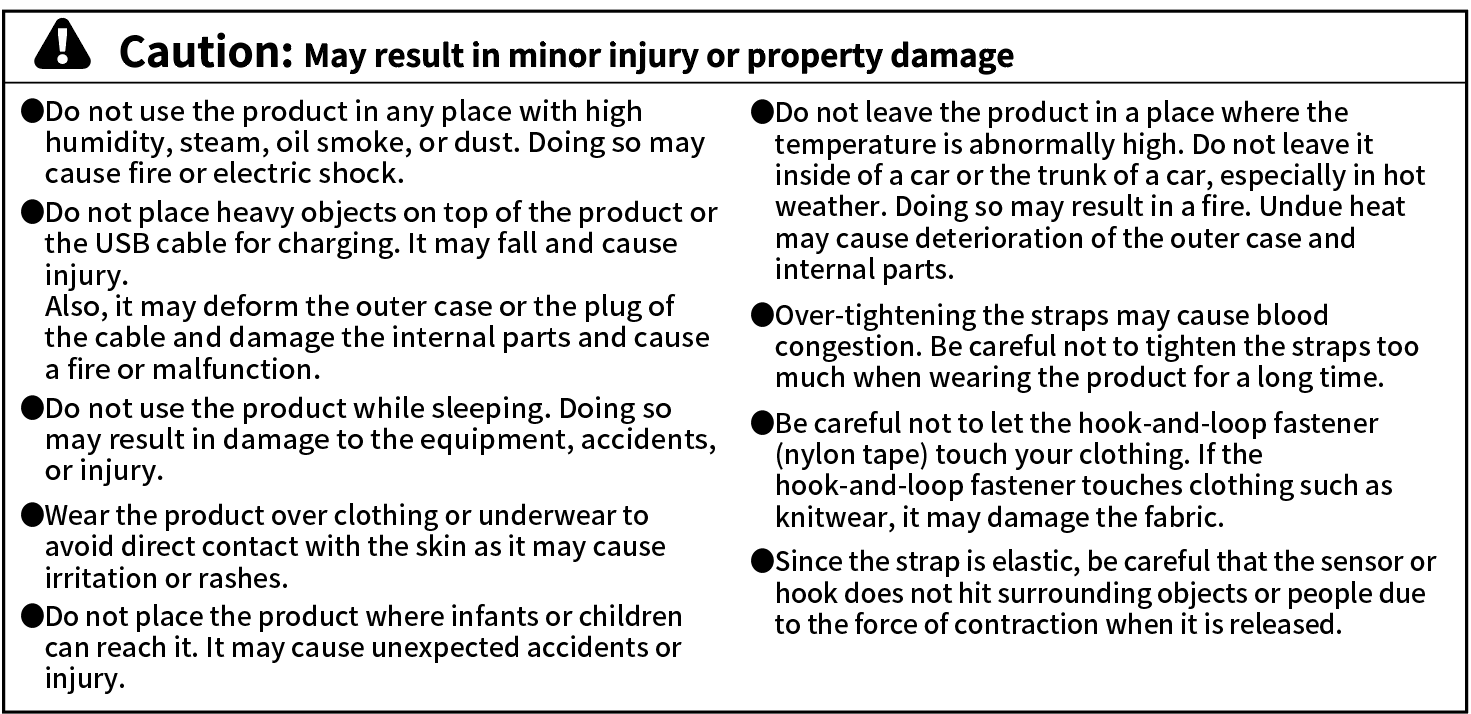

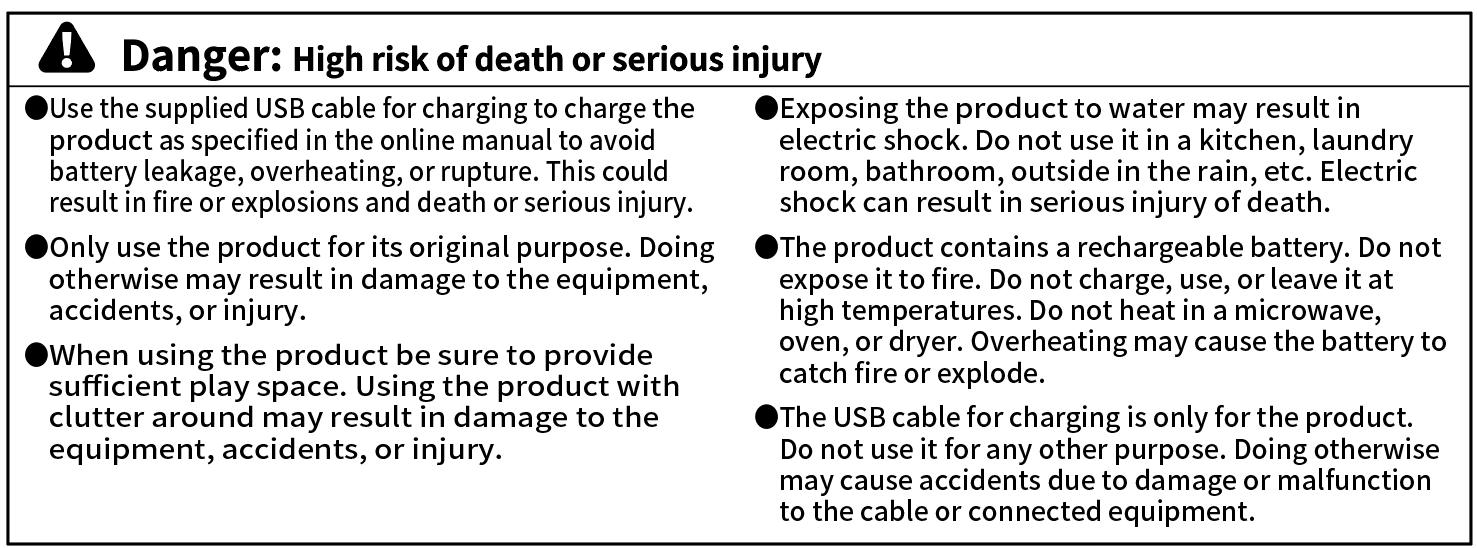

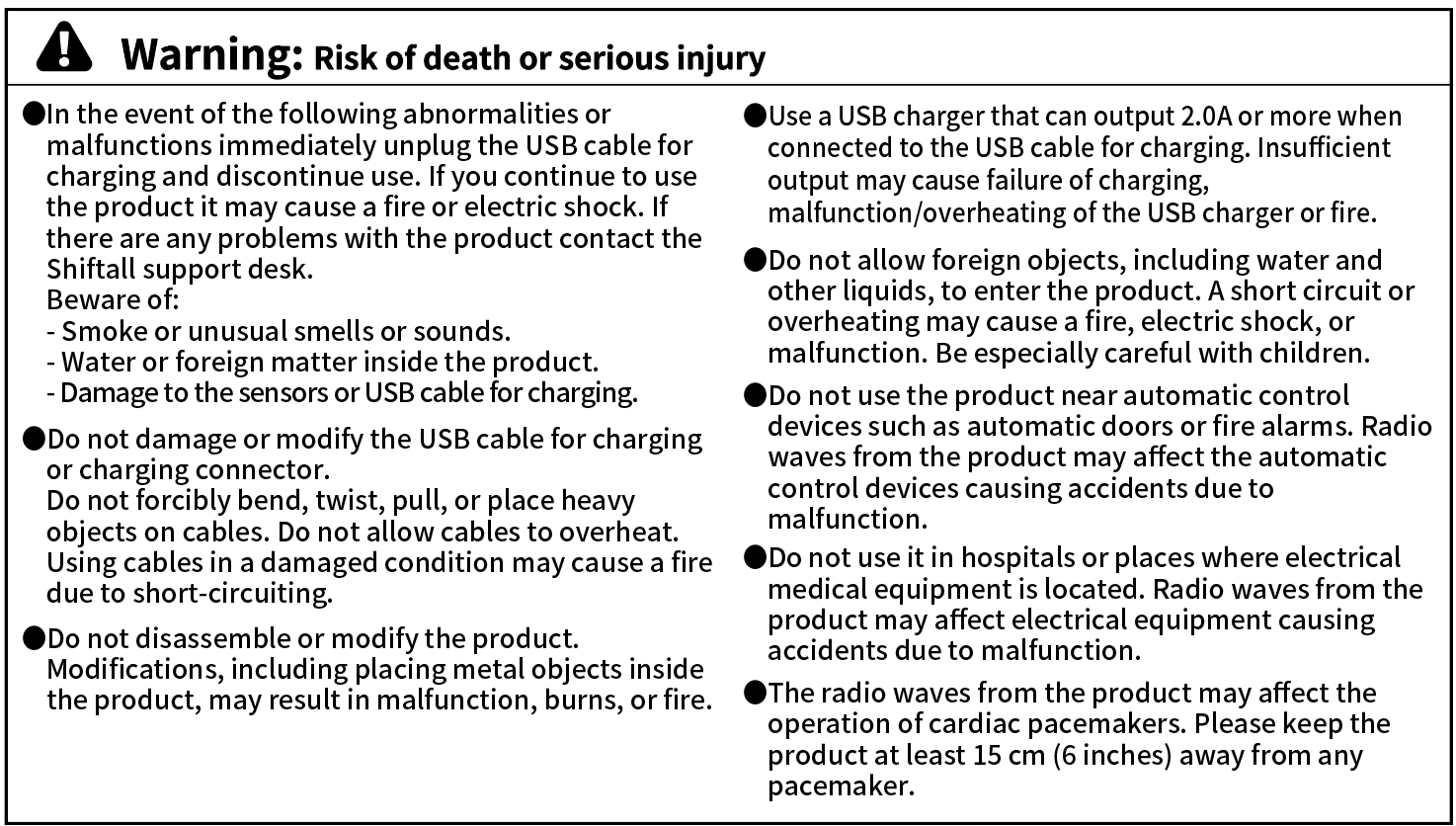

3.4 Important Safety Information

Section titled “3.4 Important Safety Information”

Safety Instructions (English)
Consignes de sécurité (français)
Sicherheitshinweise (Deutsch)
Istruzioni di sicurezza (Italiano)
Instrucciones de seguridad (español)

4. Put on the HaritoraX 2

Section titled “4. Put on the HaritoraX 2”

This chapter describes how to assemble the strap and how to put it on your body.

*Video explanations are also available.

Video: How to assemble and put on the strap

4.1 Put the straps through the sensors

Section titled “4.1 Put the straps through the sensors”

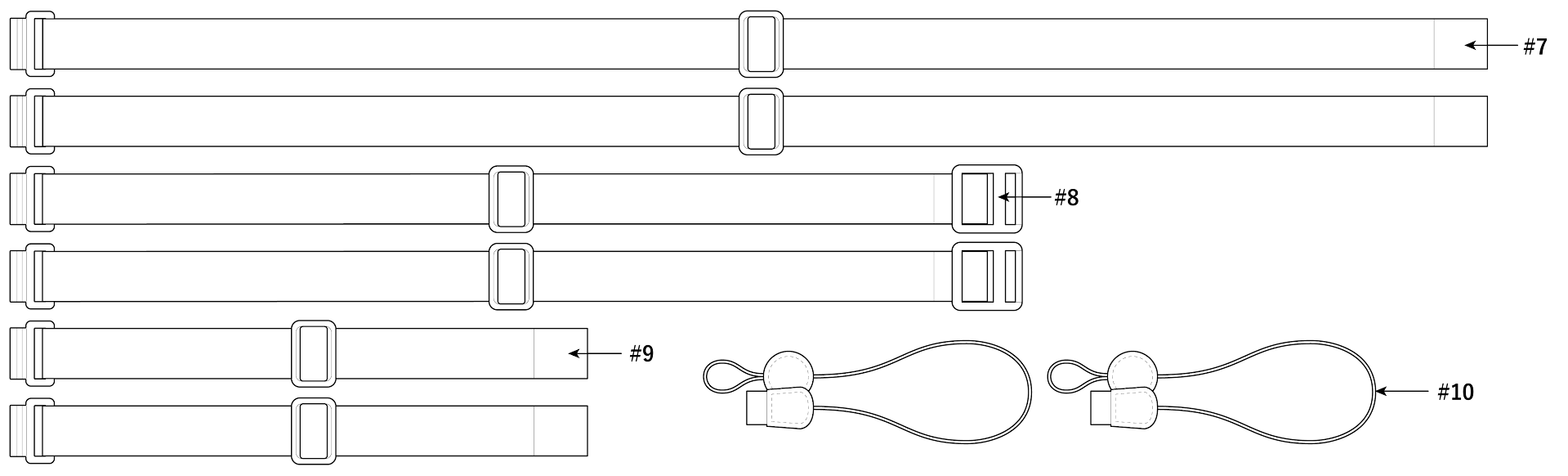

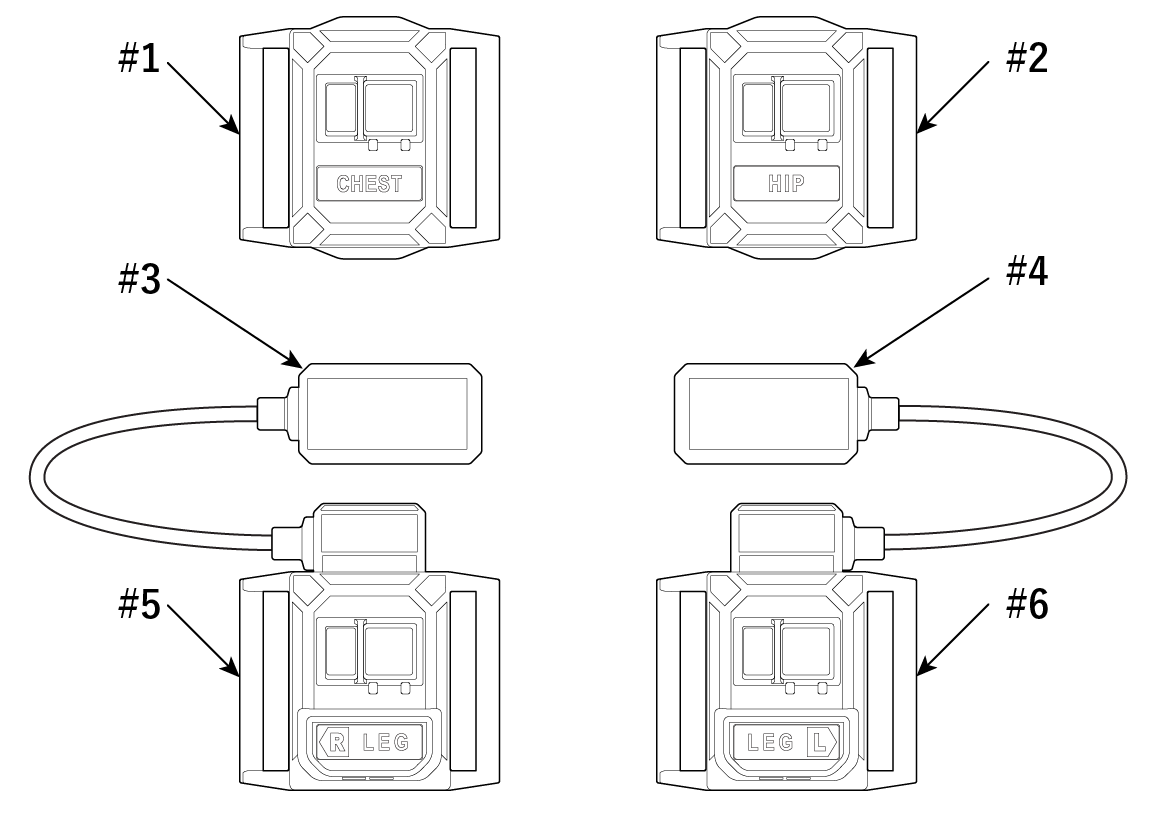

No.NameQuantity
#1Sensor (CHEST)1
#2Sensor (HIP)1
#3Right knee sensor1
#4Left knee sensor1
#5Right leg sensor (LEG R)1
#6Left leg Sensor (LEG L)1
#7Chest strap/Hip strap (Common)2
#8Knee Strap2
#9Leg(Ankle) strap2
#10Cable Fixing Strap2

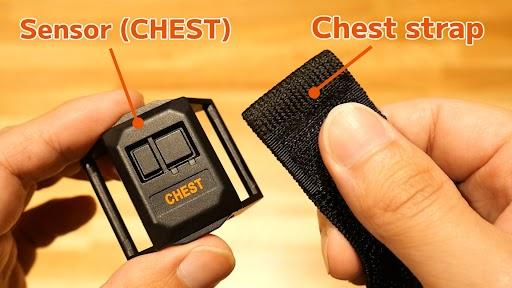

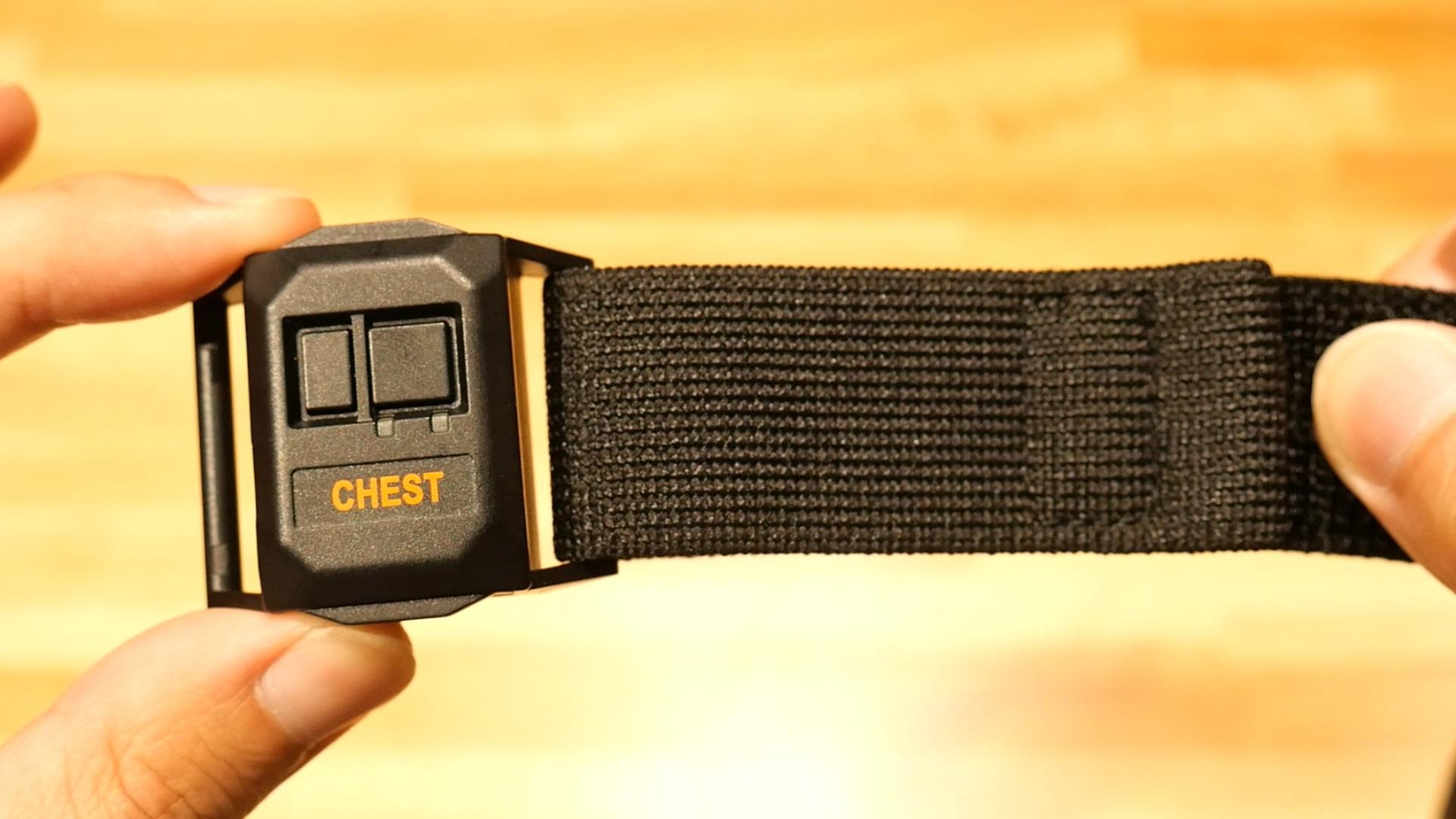

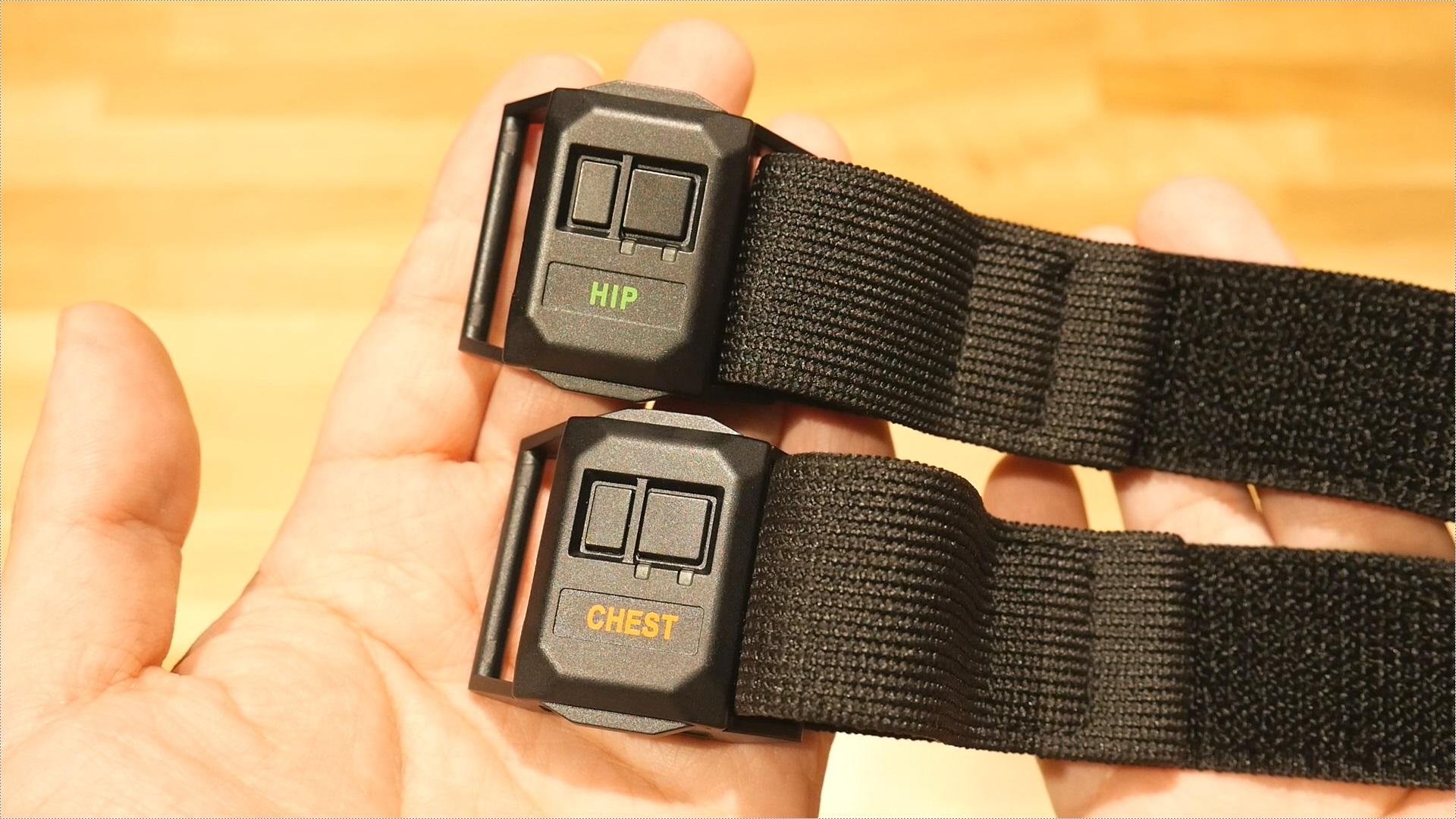

1. Pass the longest straps (Chest strap/Hip strap) through the chest and hip sensors. Pass the strap through the belt loop on the right side of the sensor (the side opposite to the one with the charging terminal). Pass the strap from the back of the sensor with the hook-and-loop fastener side facing outward.

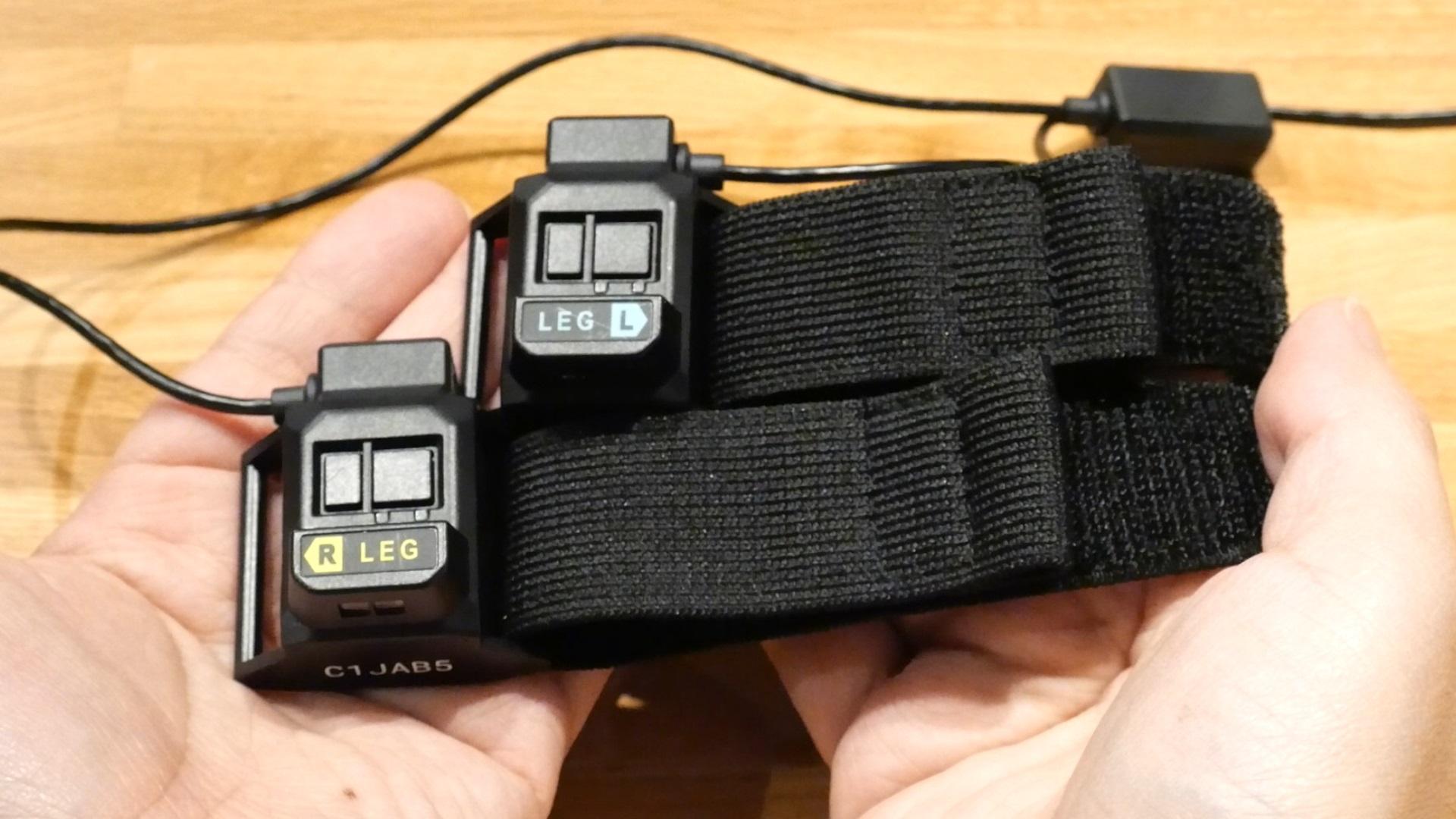

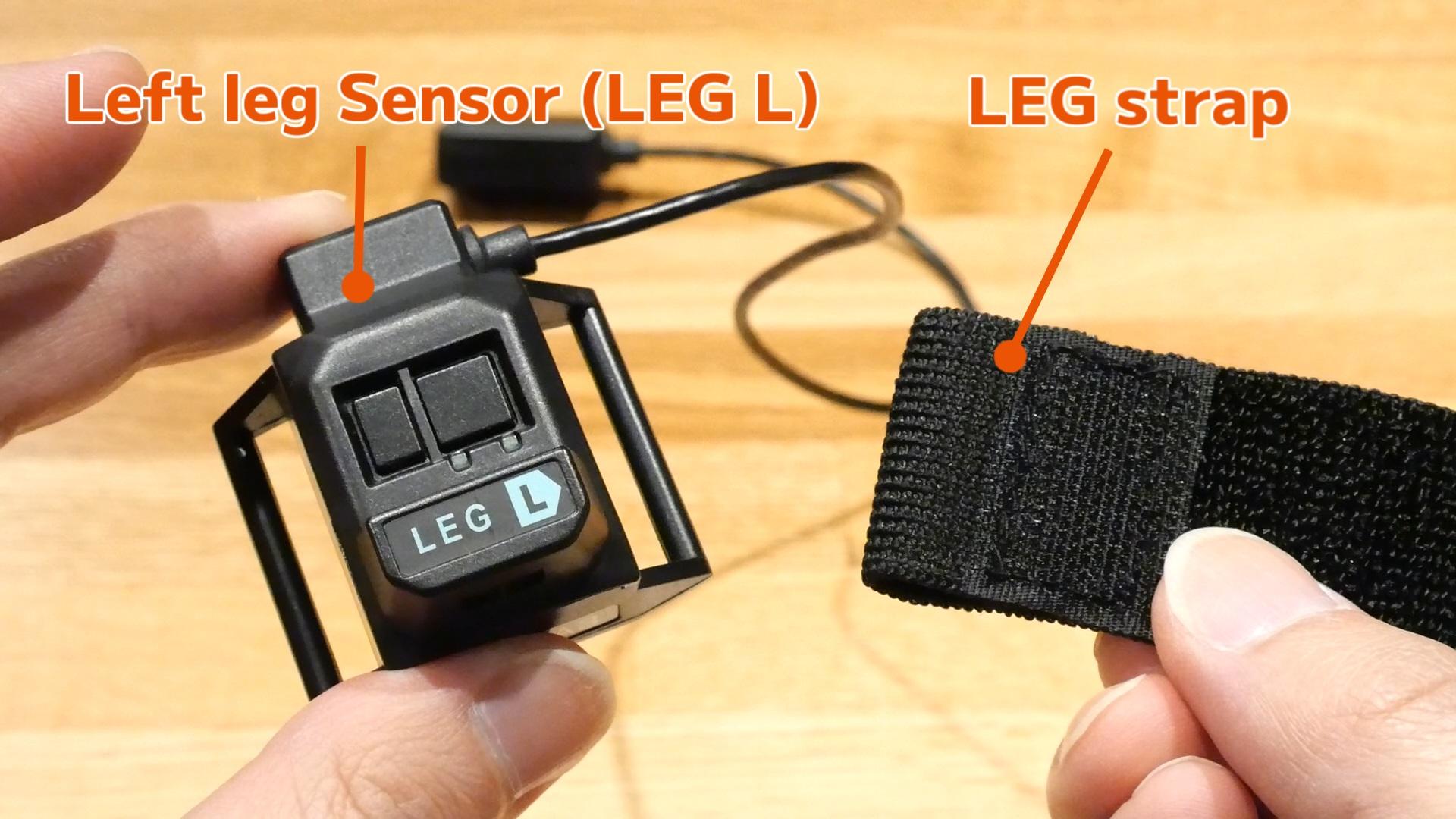

2. Pass the shortest length strap (Leg strap) through the left and right leg sensors.

The position and direction to pass the strap are the same as chest and hip sensors.

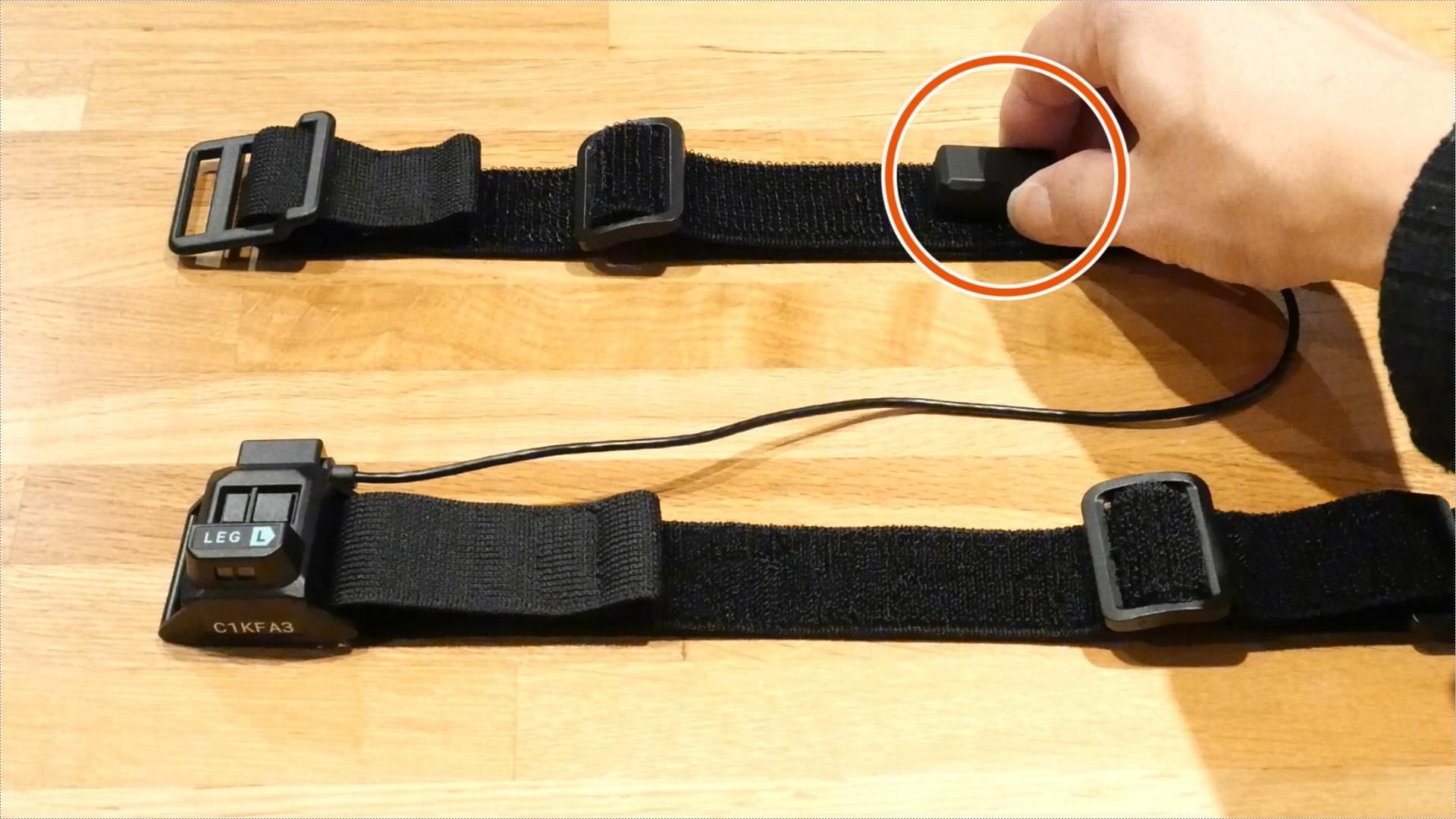

3. Attach the left and right knee sensors to the mid-length strap (knee strap). The orientation does not have to be as shown in the picture.

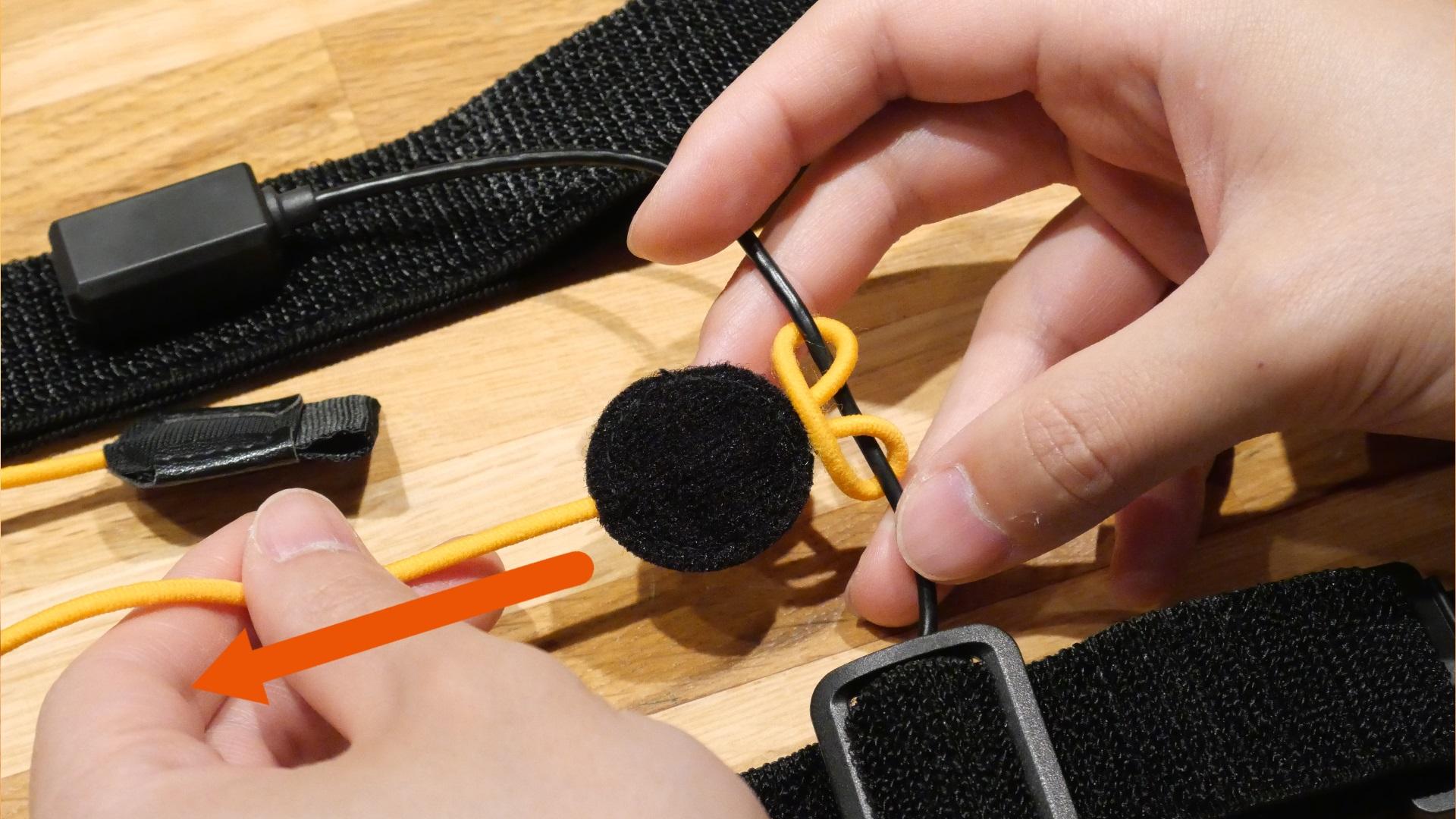

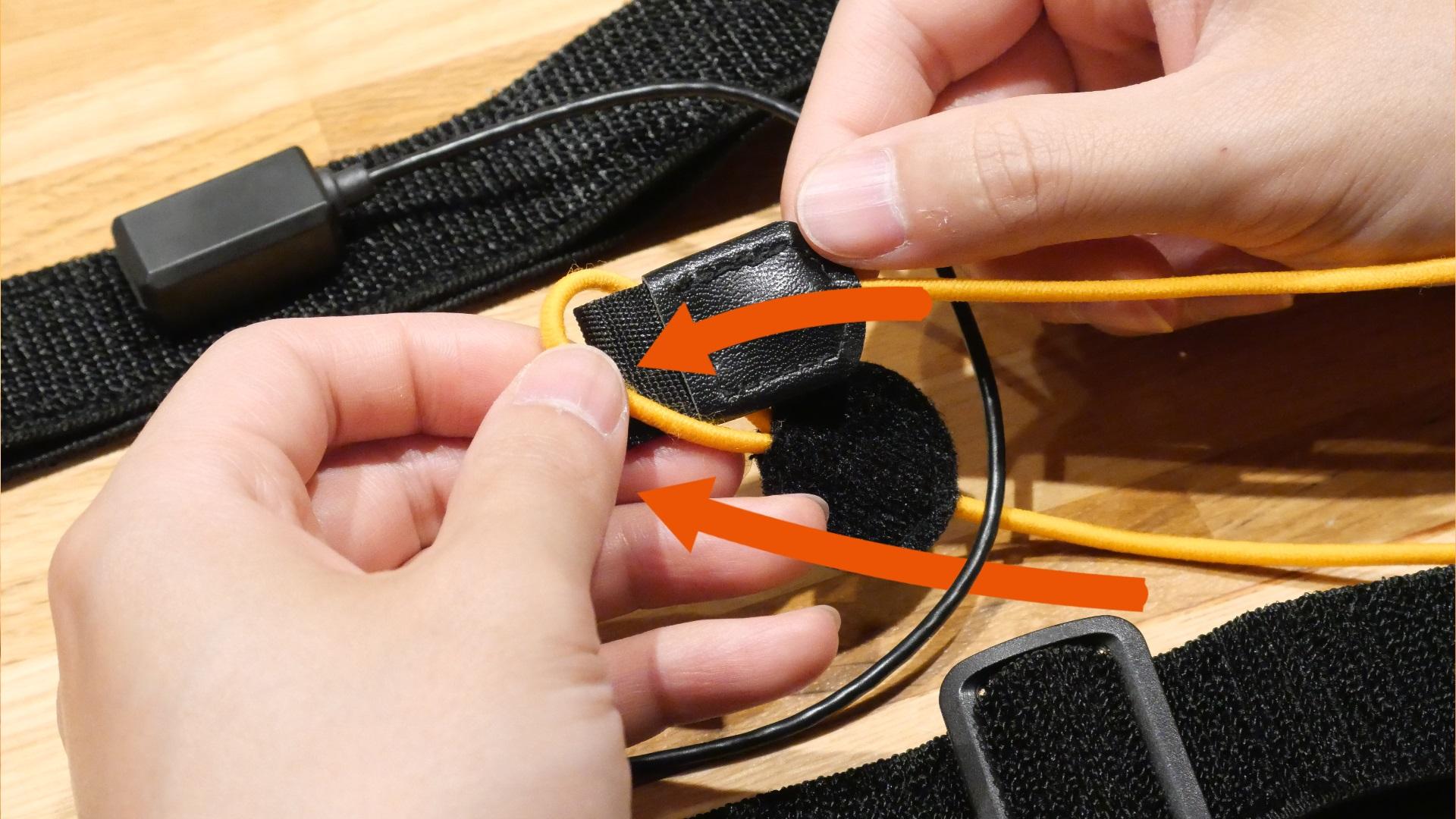

4.Attach the cable fixing strap to the cable that connects the above and below knee sensors.

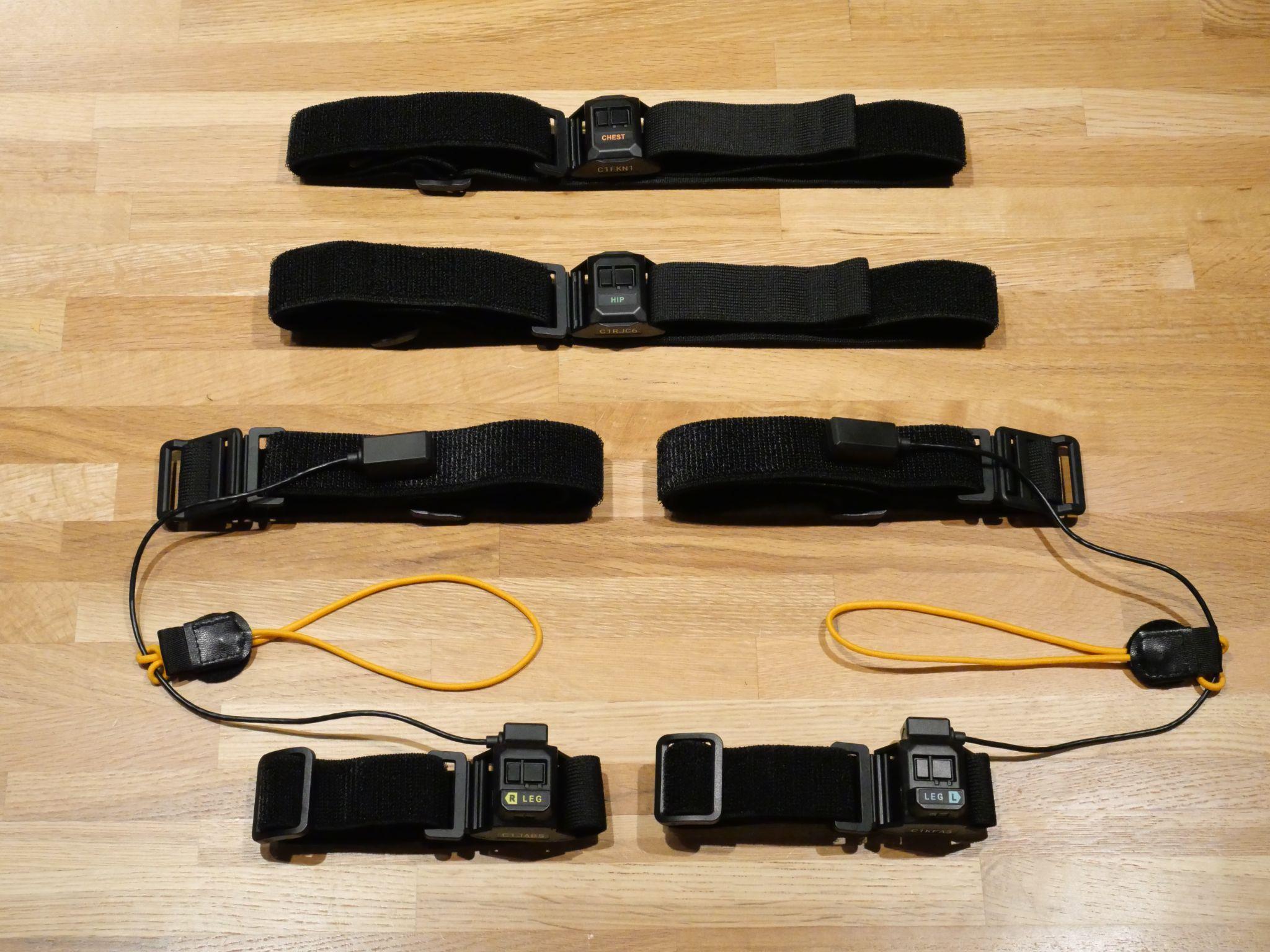

[Completed sensors & straps]

【When use ankle motion detection】

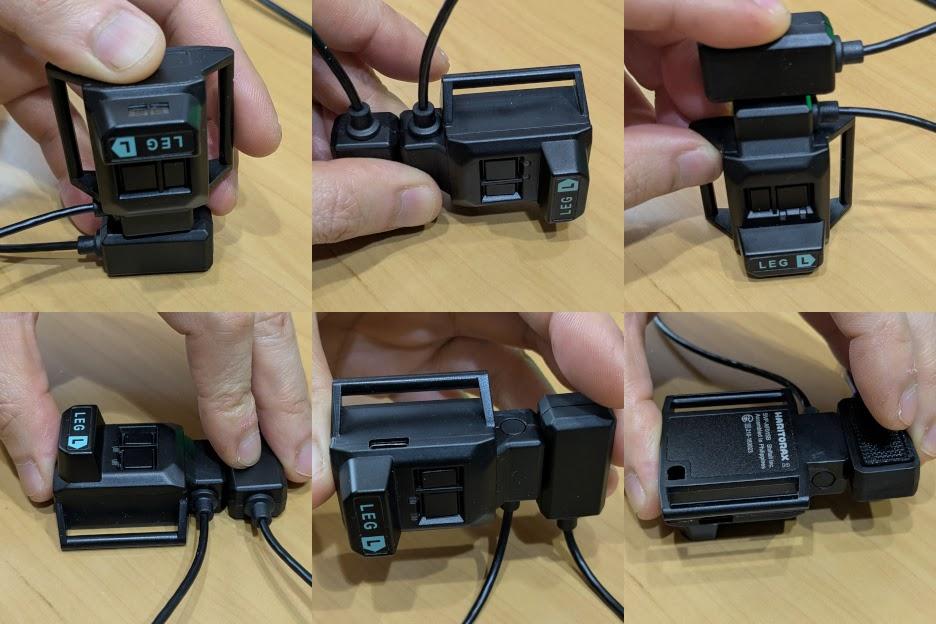

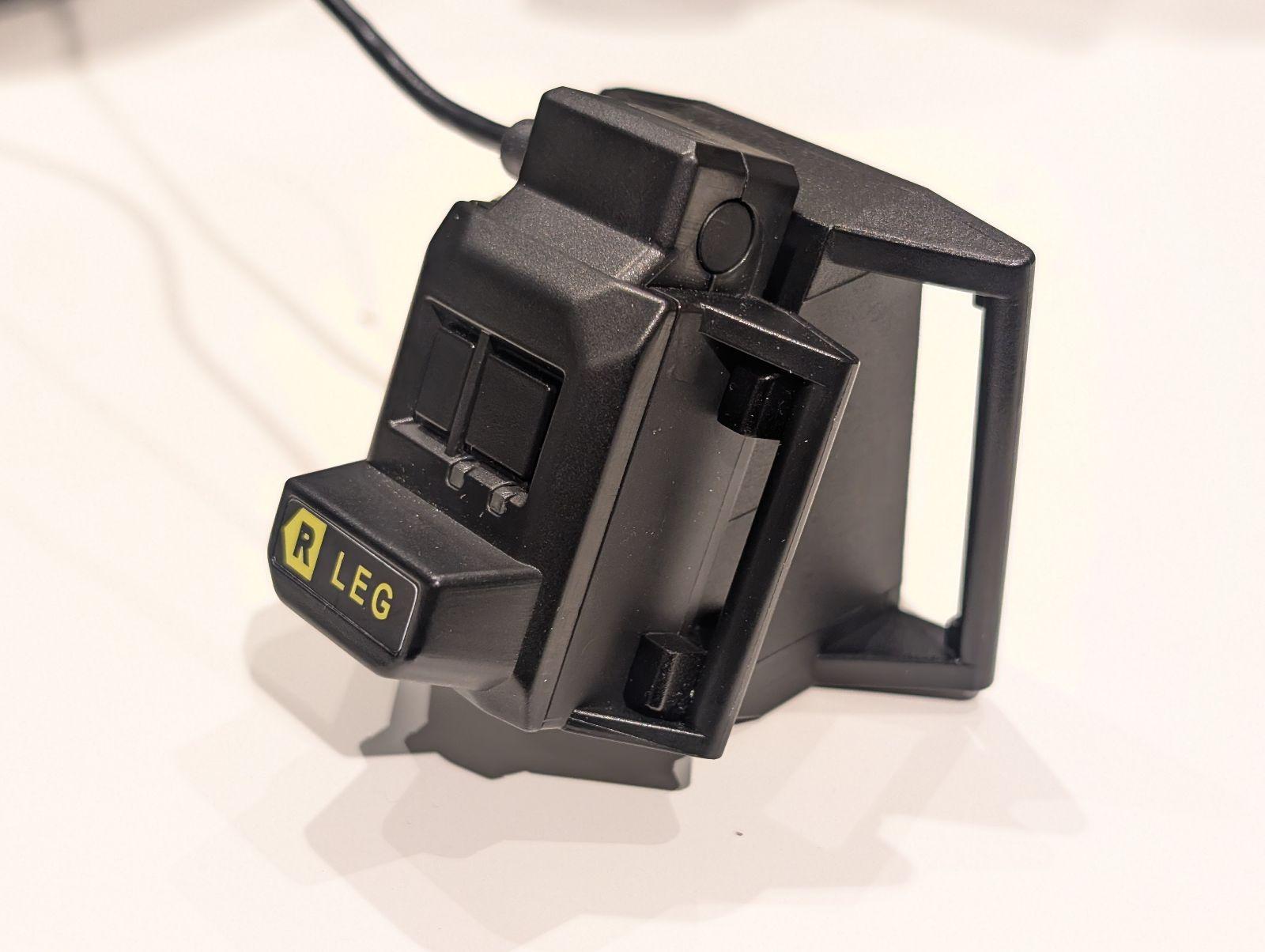

Attach leg sensors to LiDAR sensor angle adjustment spacers and pass the strap through the LiDAR sensor angle adjustment like below.



4.2 Power on the sensor

Section titled “4.2 Power on the sensor”

Press and hold the main button (large button) on the sensor for more than 3 seconds to turn on the power. The red LED and green LED light for 2 seconds. After that, the green LED starts blinking slowly. It will be in “Connection standby mode”.

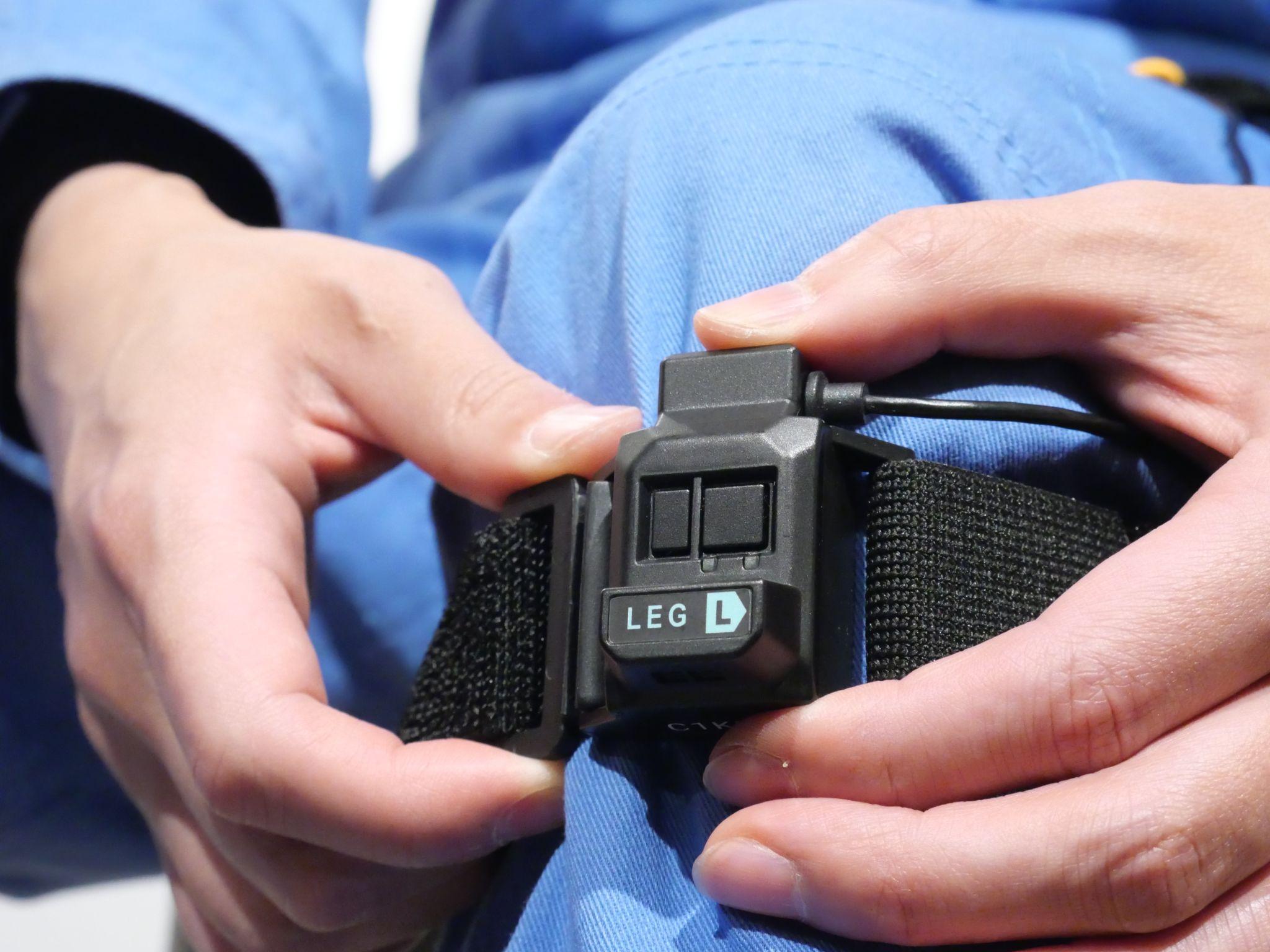

4.3 Put on the sensors

Section titled “4.3 Put on the sensors”

Video :How to assemble and put on the strap

1. Prepare the strap from the “Put the straps through the sensors” section. Adjust the length of the strap with the adjuster according to your body size.

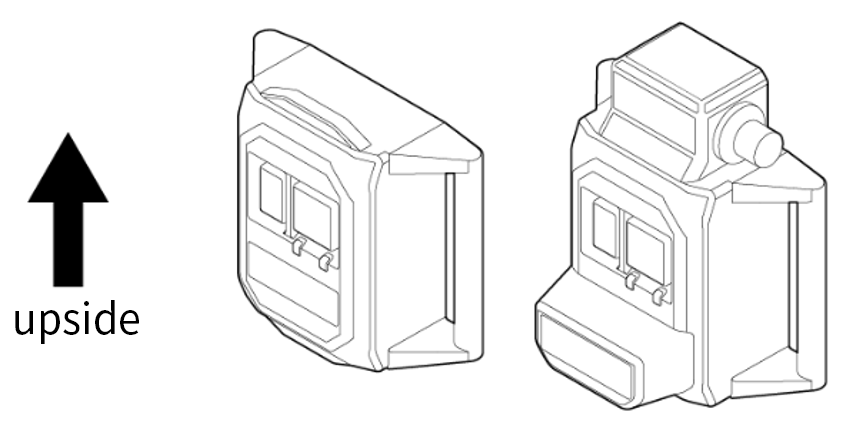

2. Put on each sensor on your body. The sensor has an installation position and a vertical direction.

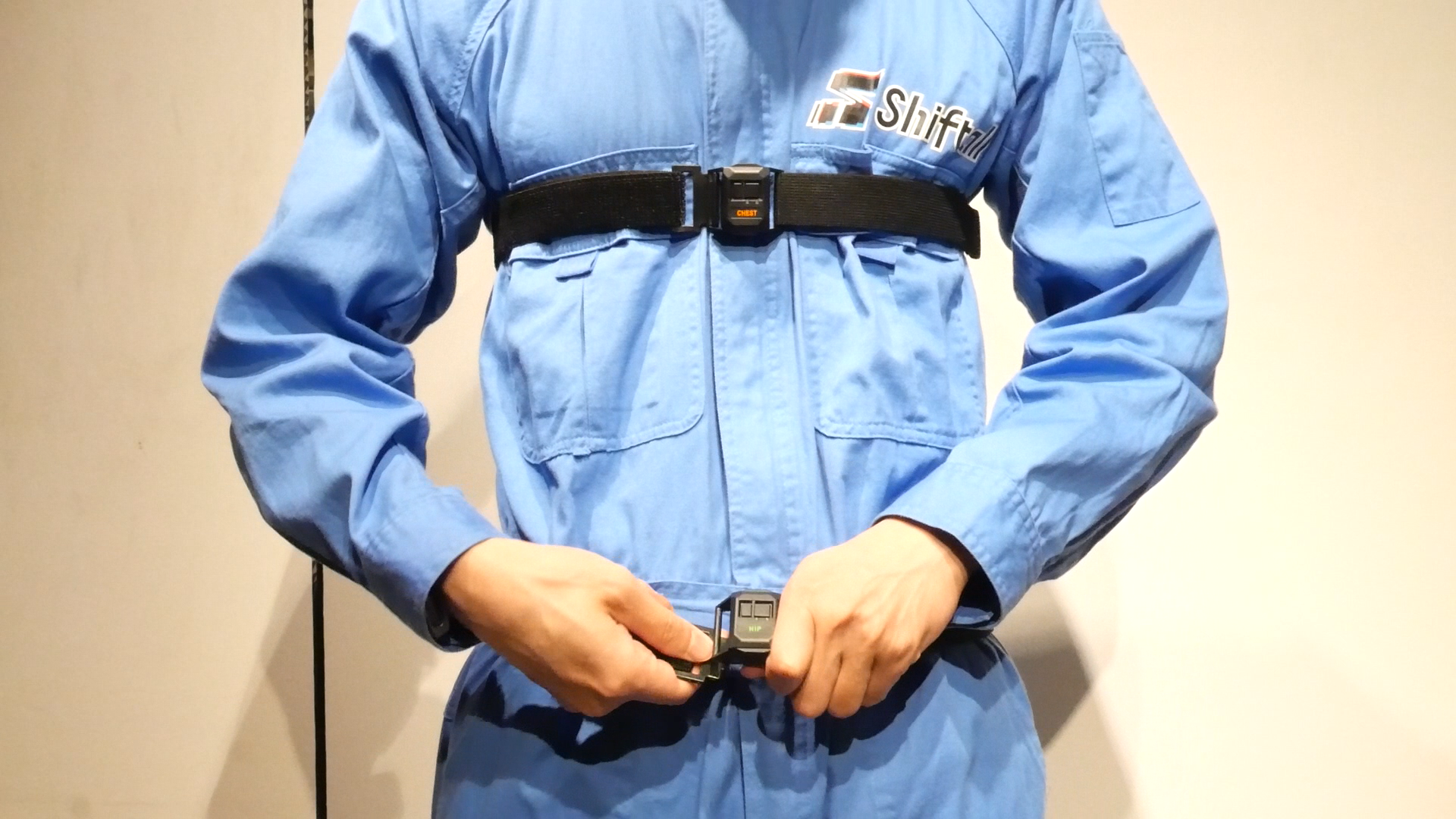

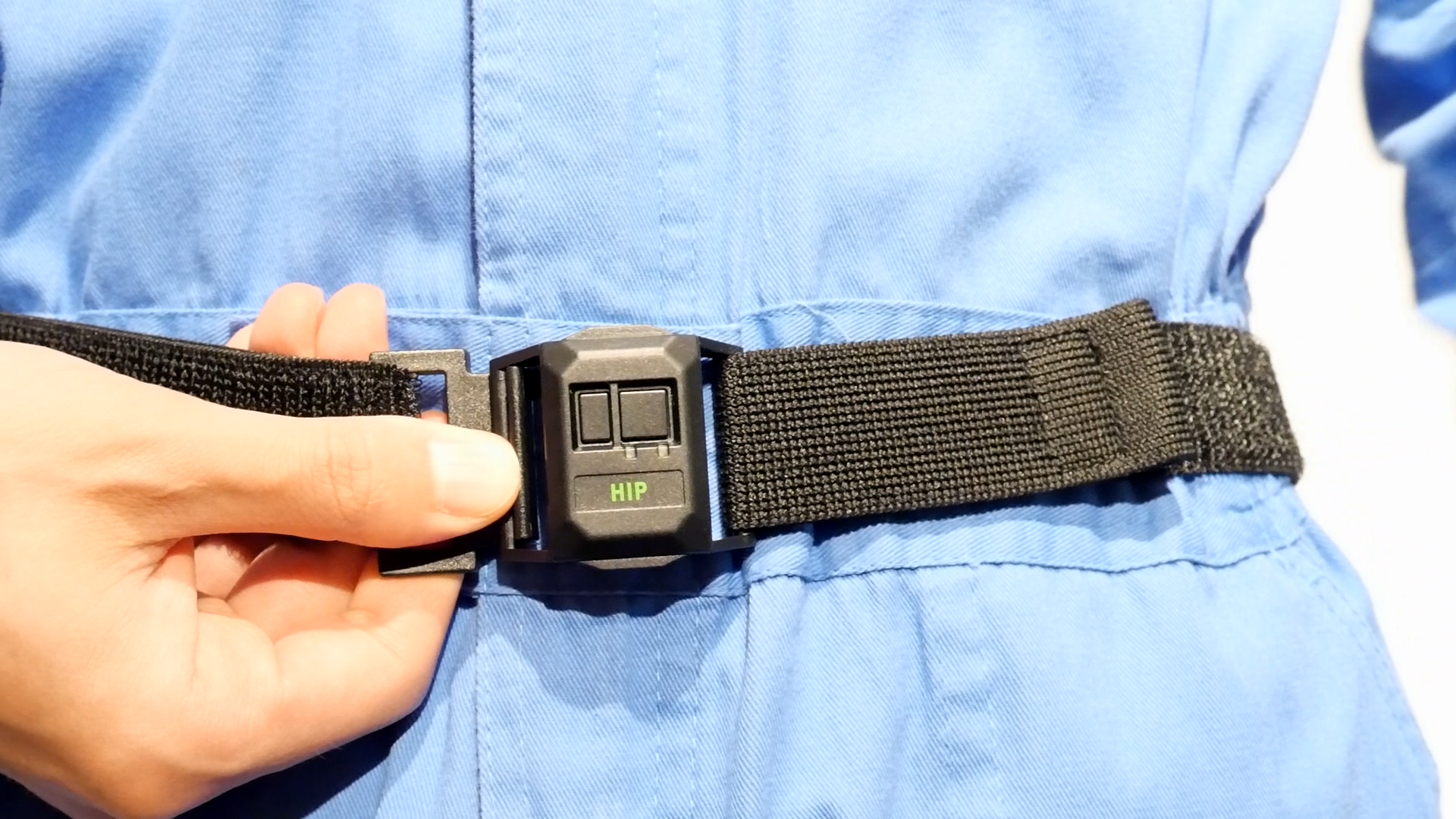

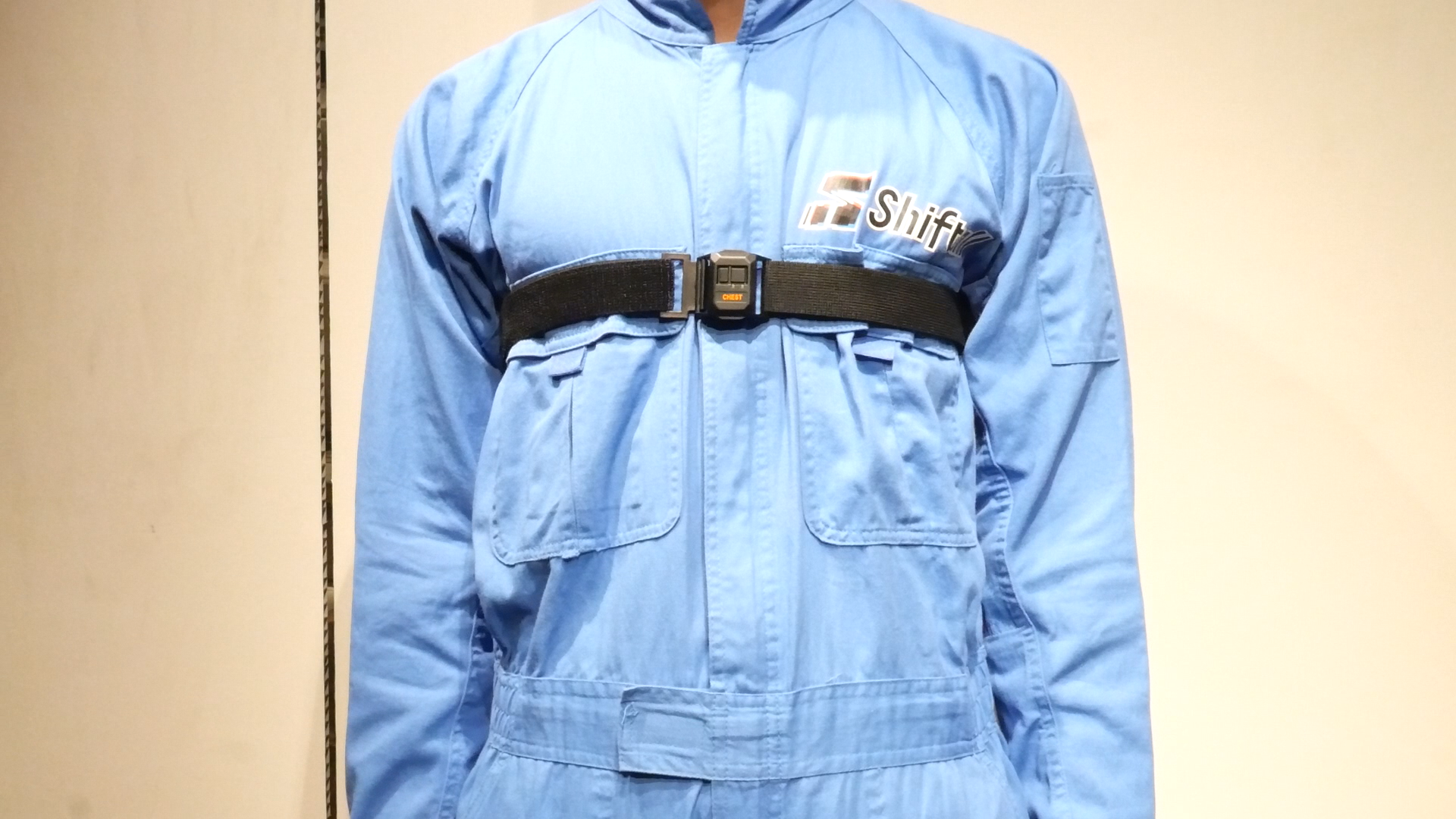

Place the chest sensor as high as possible, and the hip sensor as close to the pelvis as possible.

The Leg sensor can be attached anywhere between below the knee and the ankle, but please be careful not to put any load on the cable connected to the knee sensor.

The height at which the sensor is attached should be about the same on both sides. It does not have to be very strict.

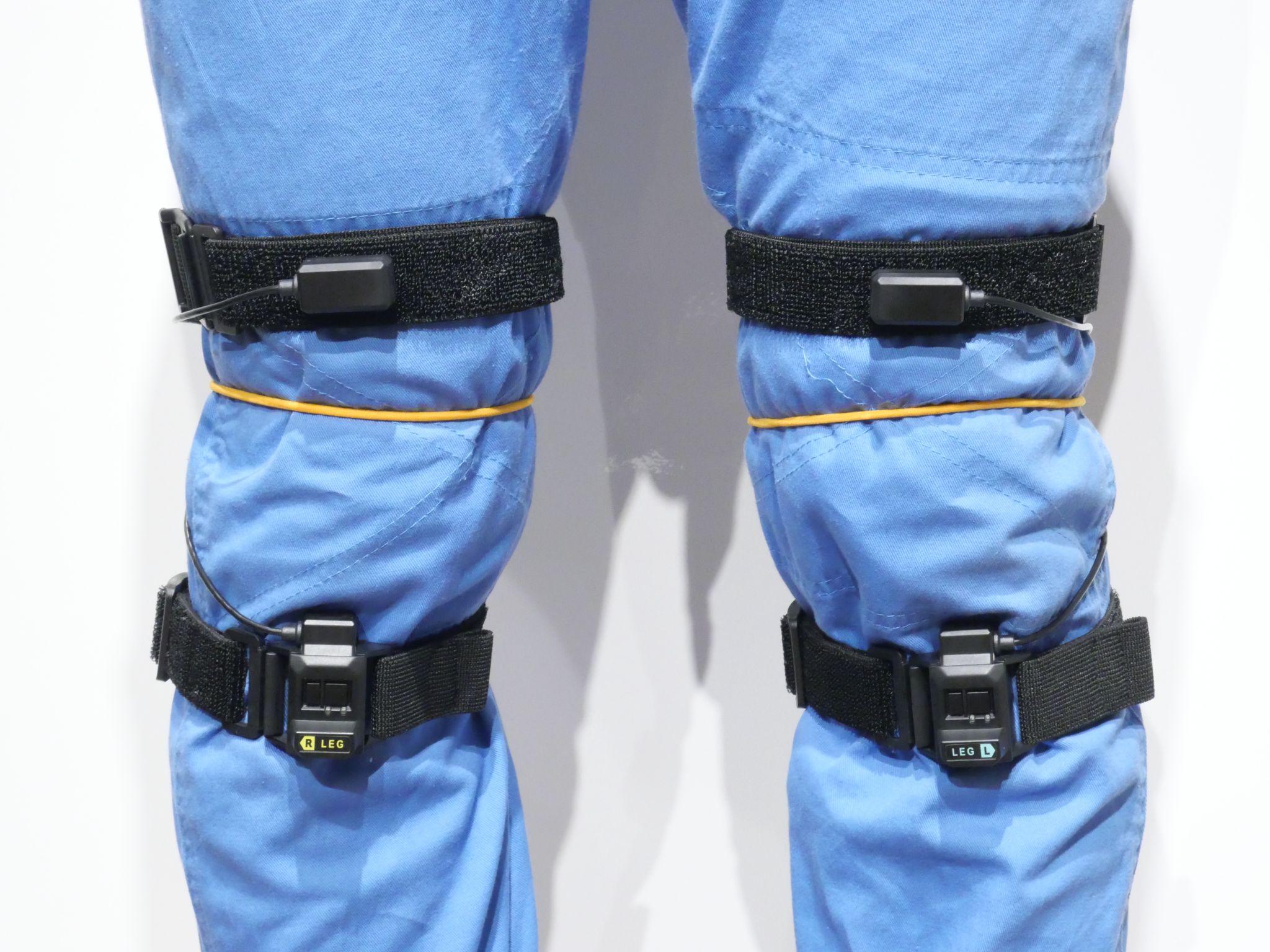

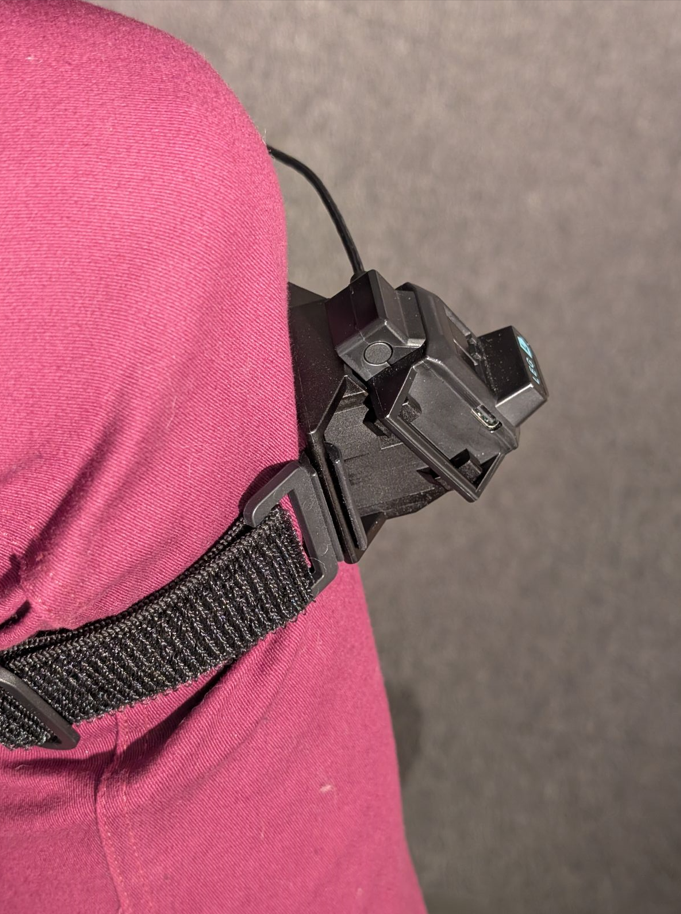

The knee sensor can be attached anywhere between the inseam and the knee, but be careful not to put a load on the cable connected to the knee sensor.

Choose a location on the body where it is difficult for the sensor to slip off, depending on your body shape.

The height should be about the same on both sides. It does not have to be very strict.

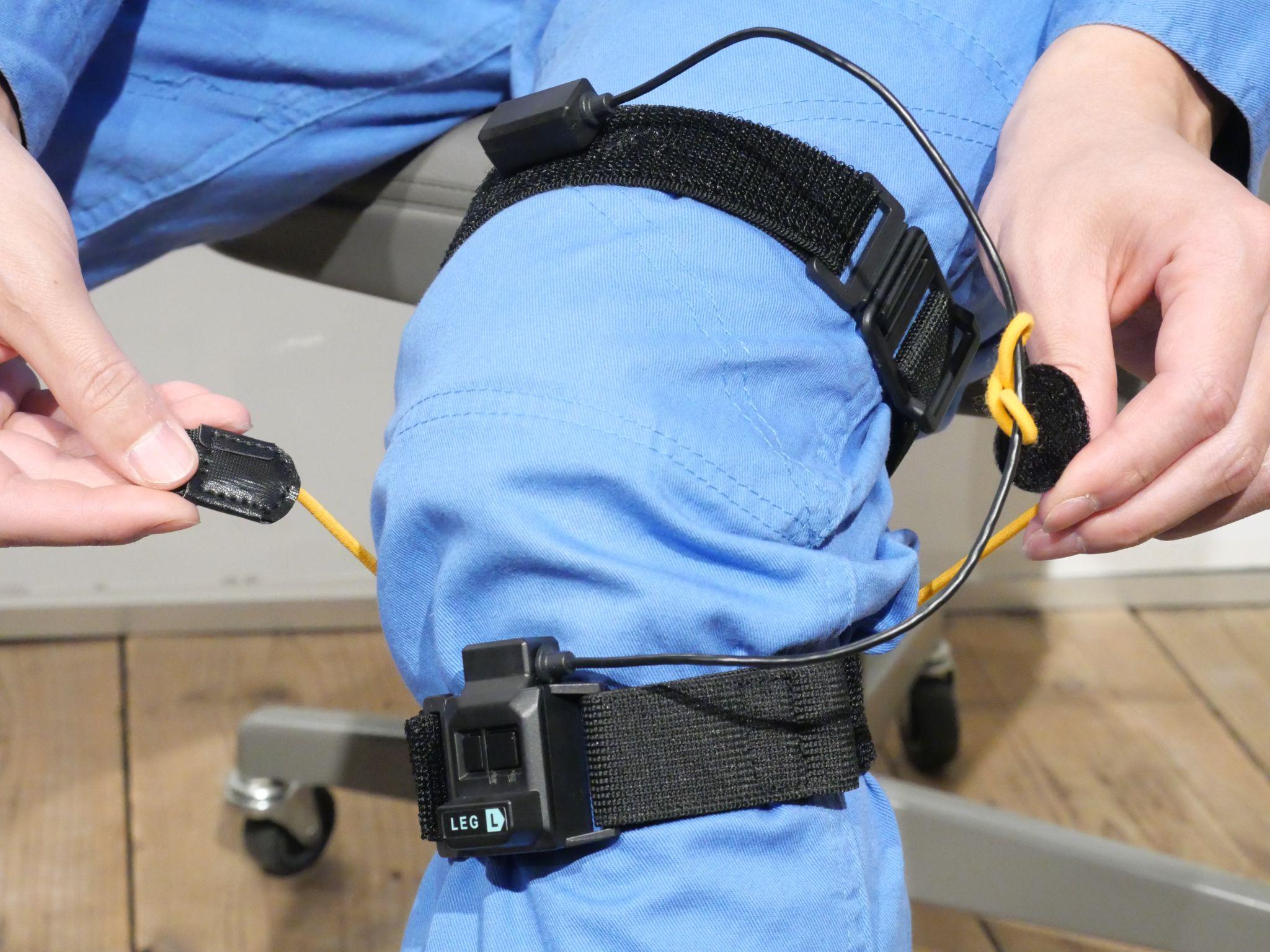

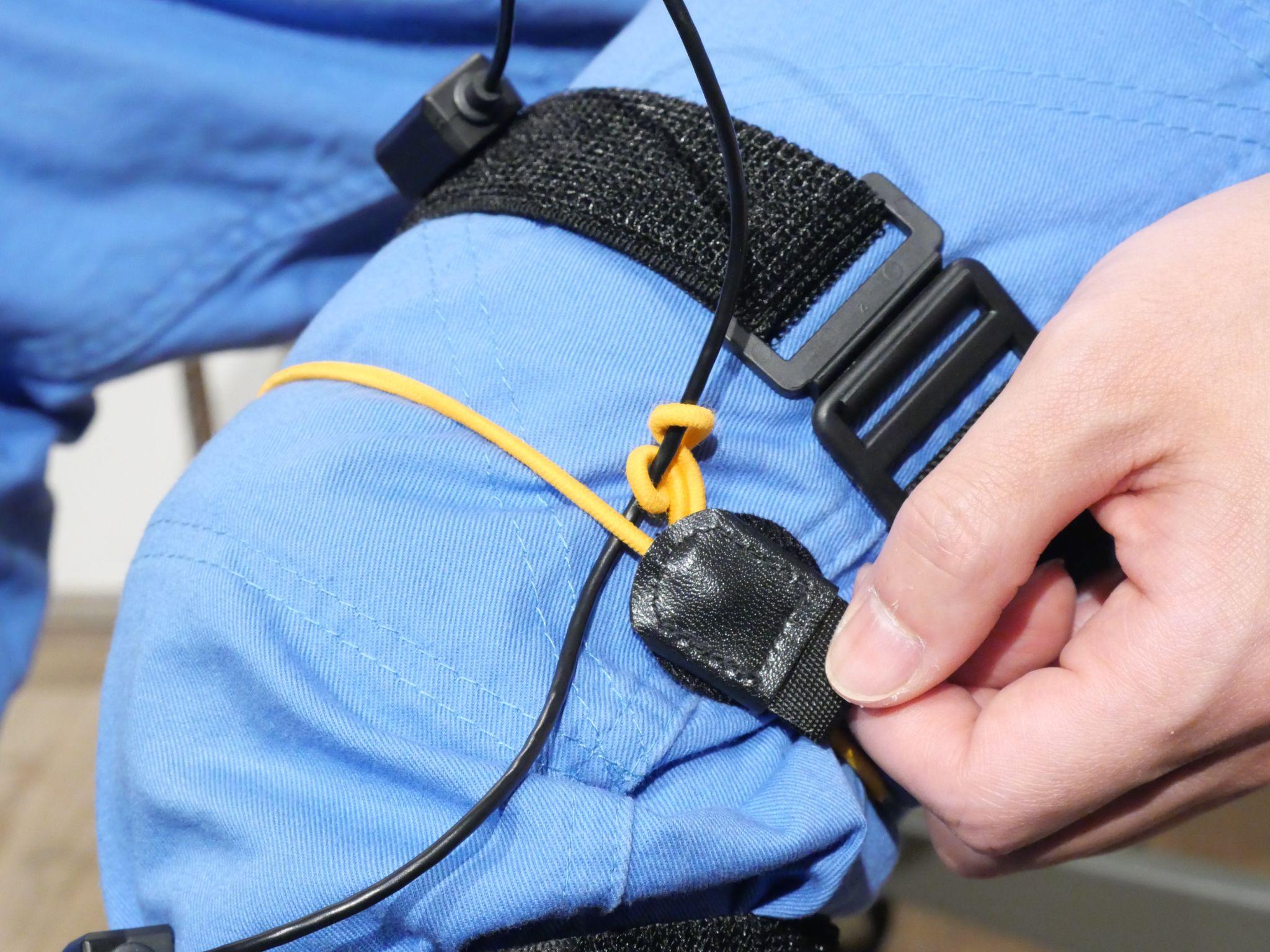

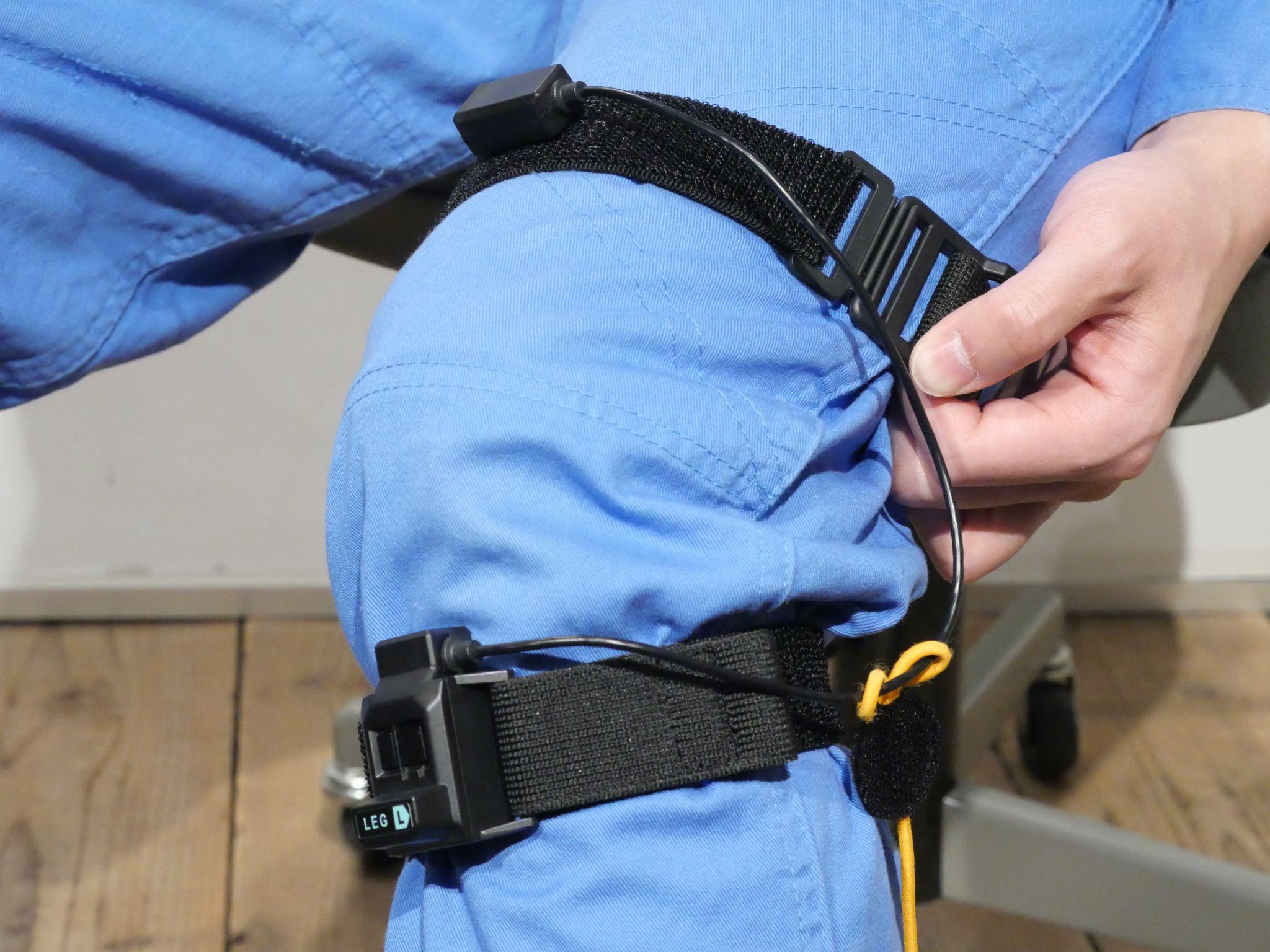

Once the leg and knee sensors are attached, attach and hold the Cable Fixing Strap to prevent the controller or furniture from catching on the excess length of the cable.

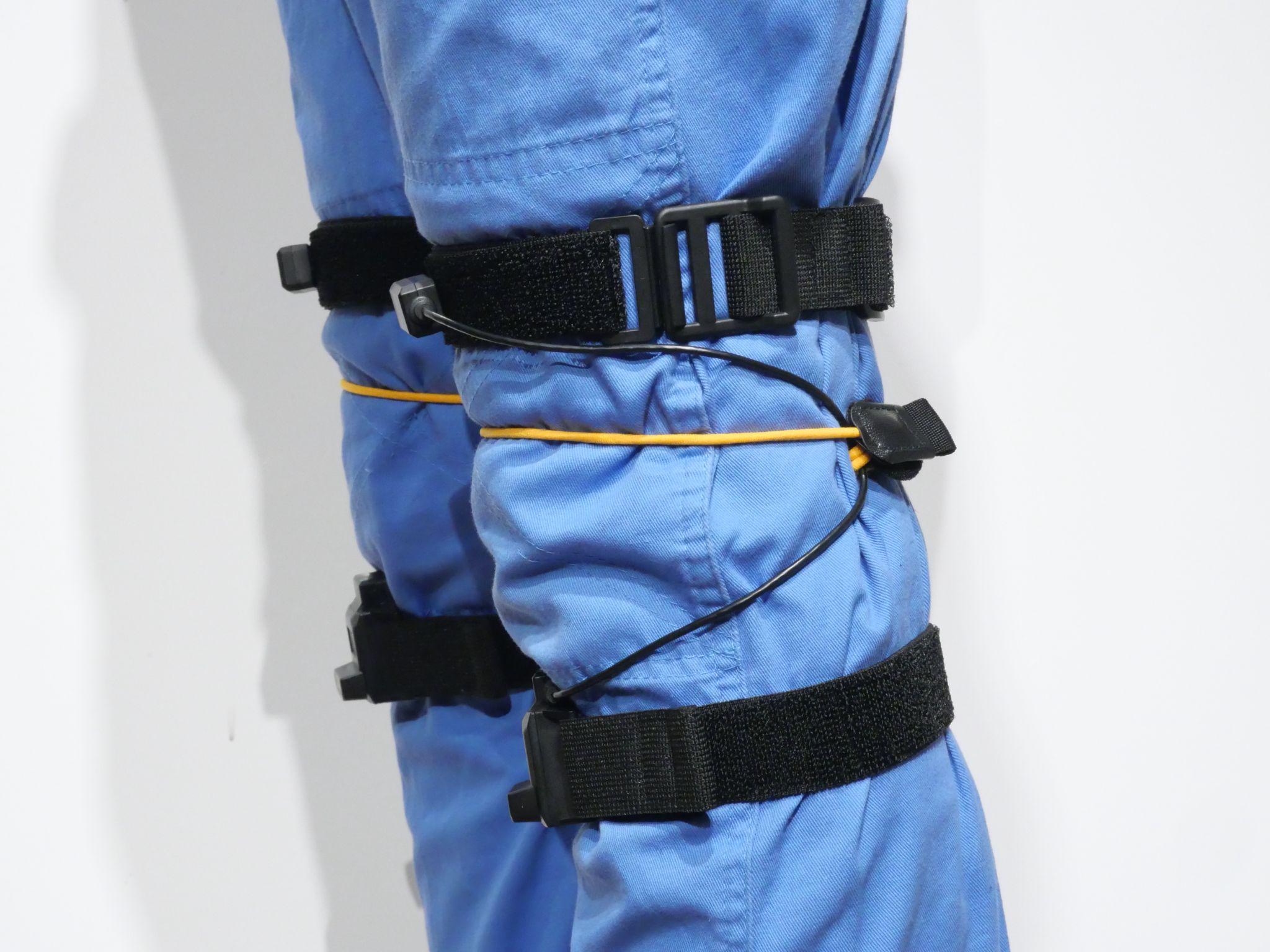

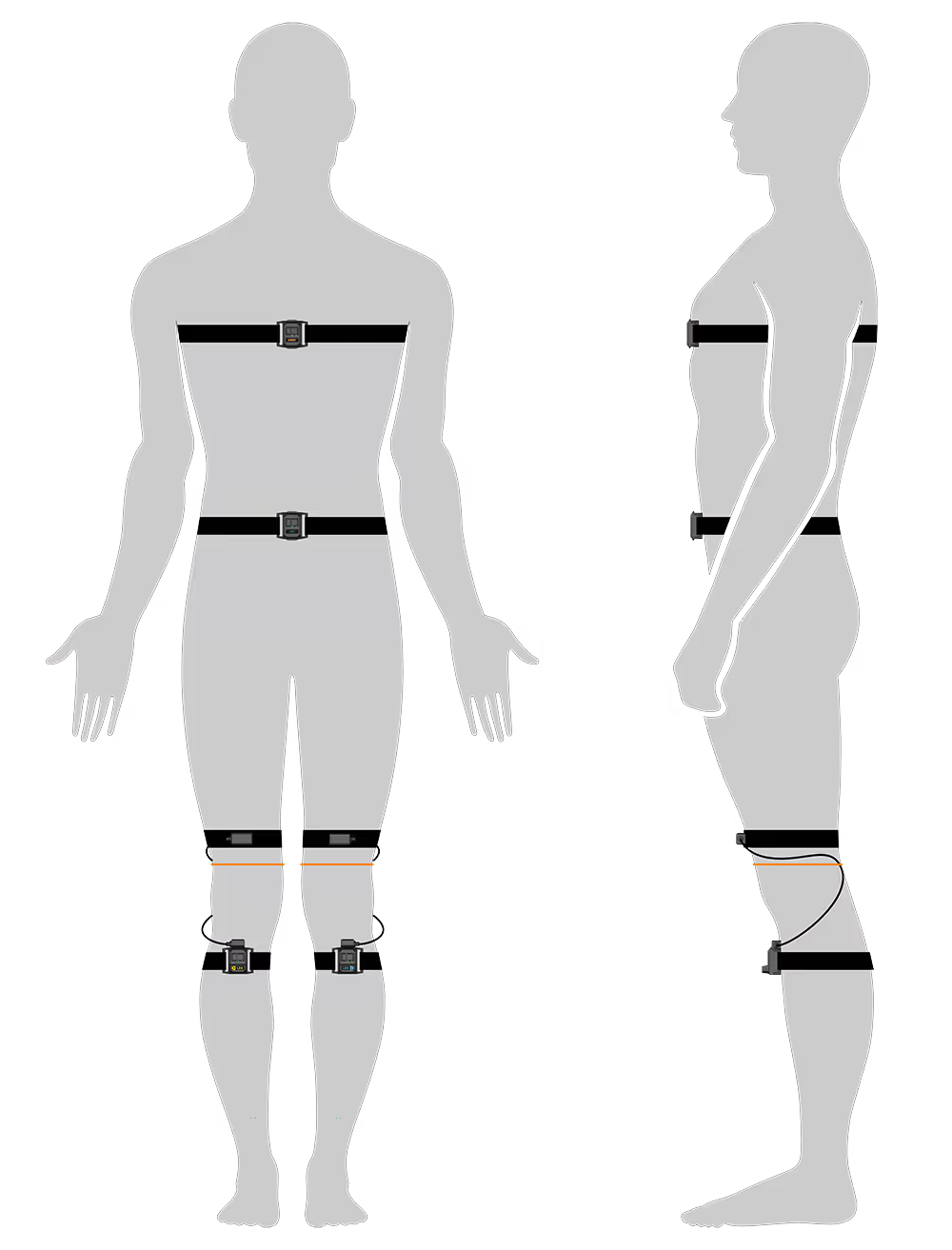

[Figure with all sensors put on]

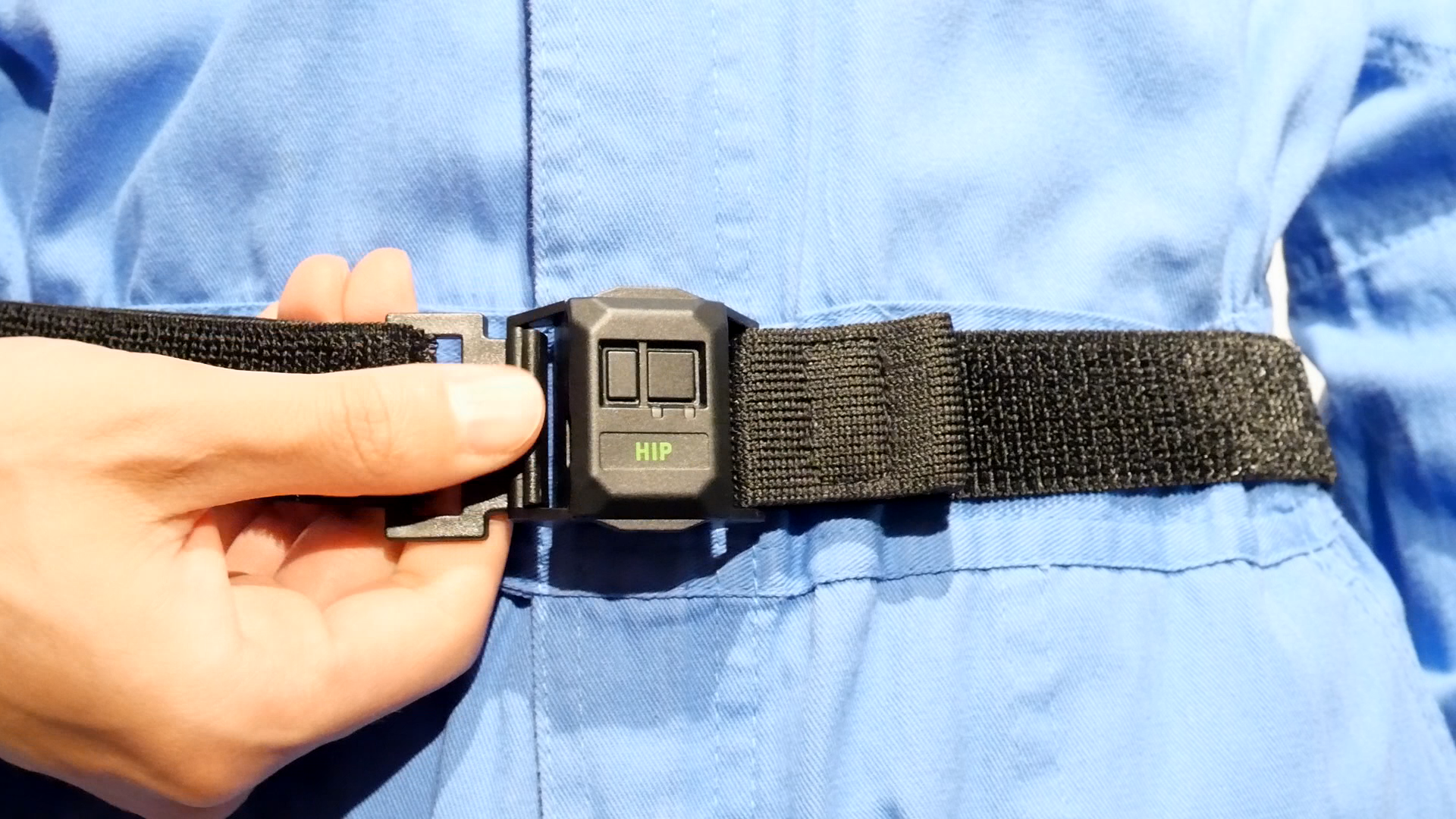

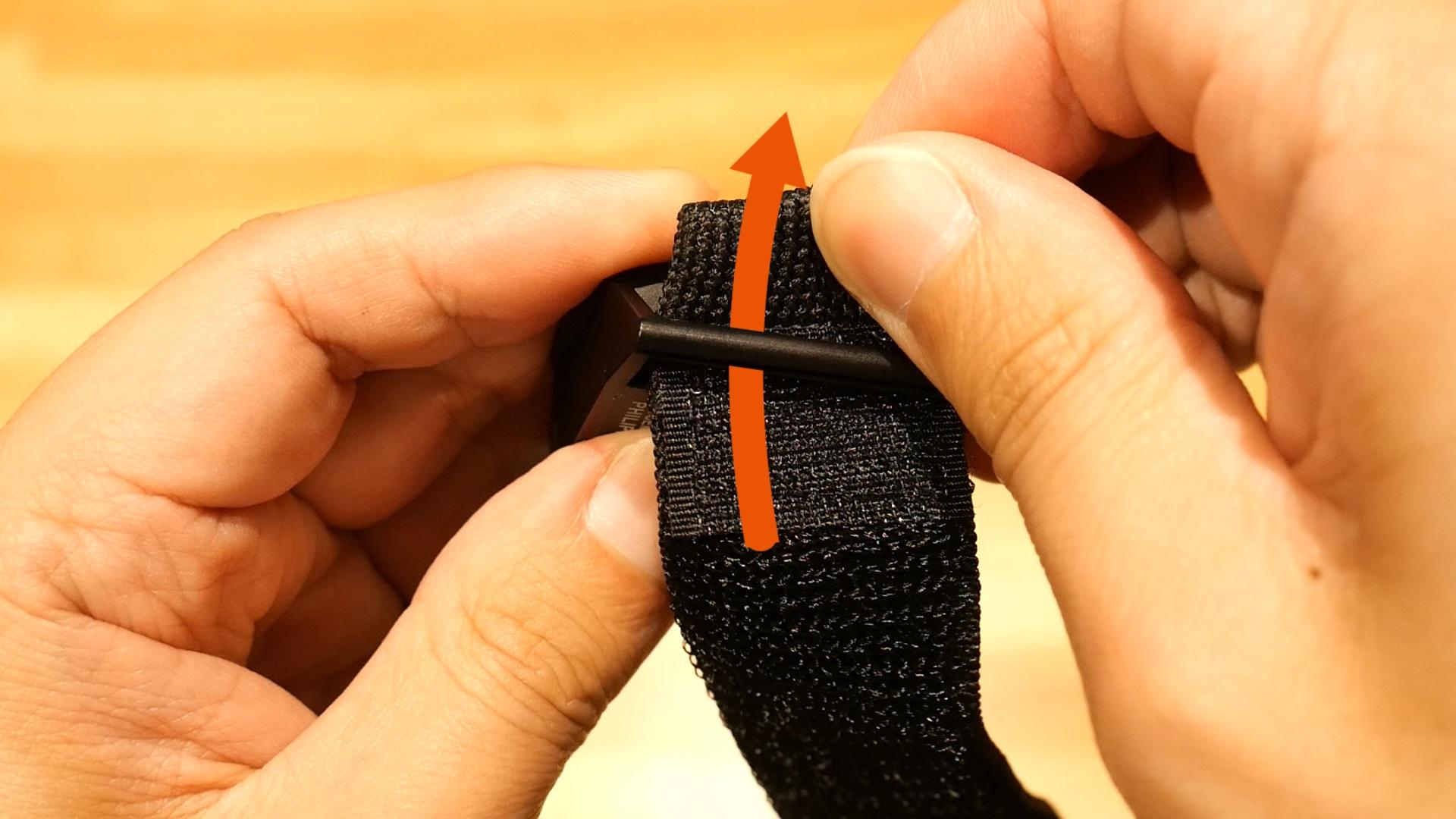

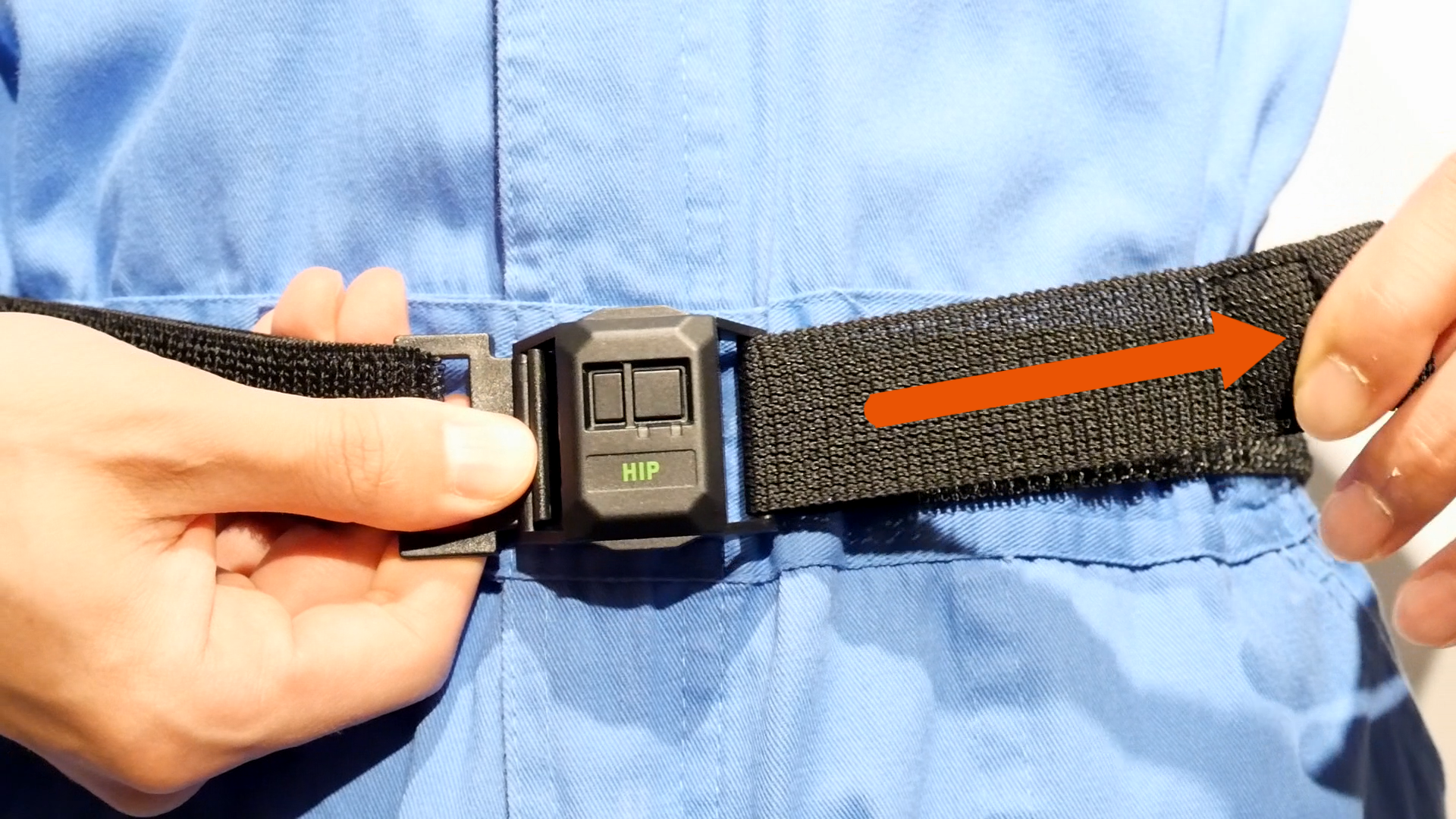

3. If the strap is loosely tightened, hold down the sensor and the hook part, peel off the hook-and-loop fastener on the other side once and pull it, adjust the strap tightening and fix it again.

* Notice *
When attaching or detaching, the tension of the straps may cause the sensor or hook to fly off, which is dangerous and may result in injury or damage to the sensor, furniture, etc.Hold the sensor with one hand and detach it by holding the hook with the other hand.

5. How to use

Section titled “5. How to use”

Instructions on how to use the sensors.

5.1 Charging

Section titled “5.1 Charging”

5.1.1 Charge method

Section titled “5.1.1 Charge method”

Please charge the battery before use.

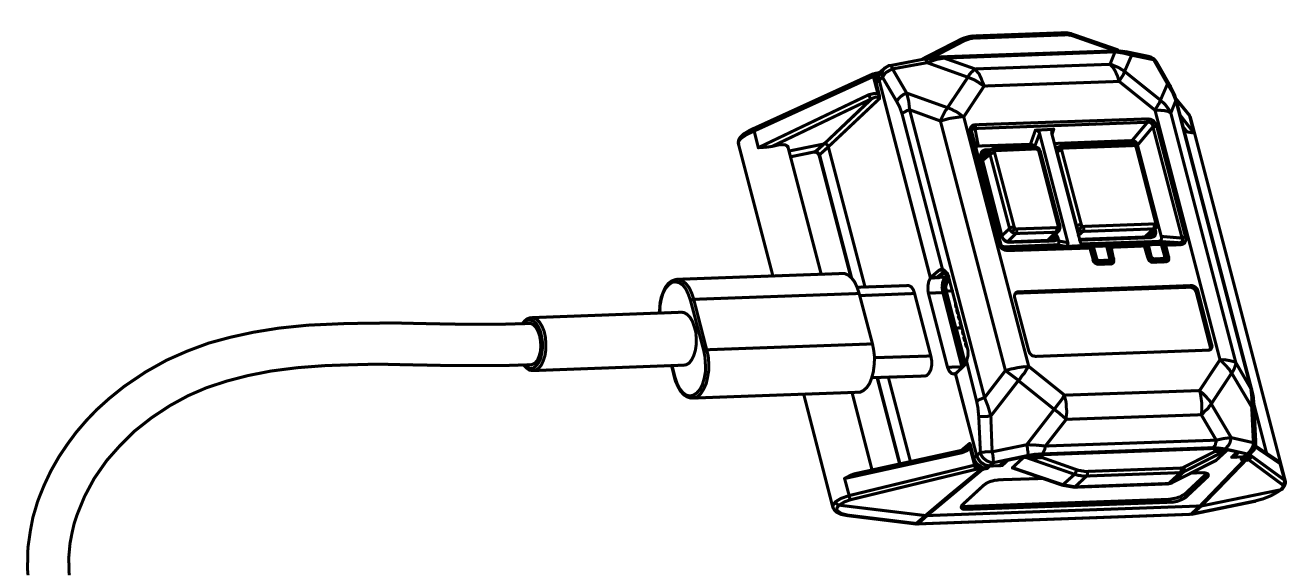

Use the included USB charging cable to charge the sensor.

  • Red LED lights up while charging.
  • It takes about 2 hours and 30 minutes from empty to fully charged (with power off).
  • Red LED turns off when charging is complete.

[Notes about USB cable]

  • Hold the USB plug in your hand and insert/remove it straight.
  • If you use a USB charger with an output of less than 5V/2.0A per port,It may not be able to charge, or may cause the USB charger to malfunction, overheat, or catch fire. Be sure to charge with a USB charger with an output of 5V/2.0A or more.

[Notes when charging]

5.2 How to operate the sensor

Section titled “5.2 How to operate the sensor”

5.2.1 Power ON

Section titled “5.2.1 Power ON”

Press the main button of the sensor for 3 seconds or more, and turn the power on. Red LED and Green LED lights up for 2 seconds. After the green LED starts blinking slowly. It will be in “waiting for connection” state. [Video]

When the connection is established, the green LED will quickly blink twice in succession and then turn lights off for 1 second. [Video]

5.2.2 Power OFF

Section titled “5.2.2 Power OFF”

If you press and hold the main button for more than 3 seconds, the power will turn off.  [Video]

*If the sensor unit is not connected to the Shiftall VR Manager and left on for 20 minutes, the sensor unit will automatically turn off.

5.2.3 Power OFF（Forced shutdown）

Section titled “5.2.3 Power OFF（Forced shutdown）”

If you press and hold the main button for more than 15 seconds. the power will be forcibly turned off.

5.2.4 Check the communication mode

Section titled “5.2.4 Check the communication mode”

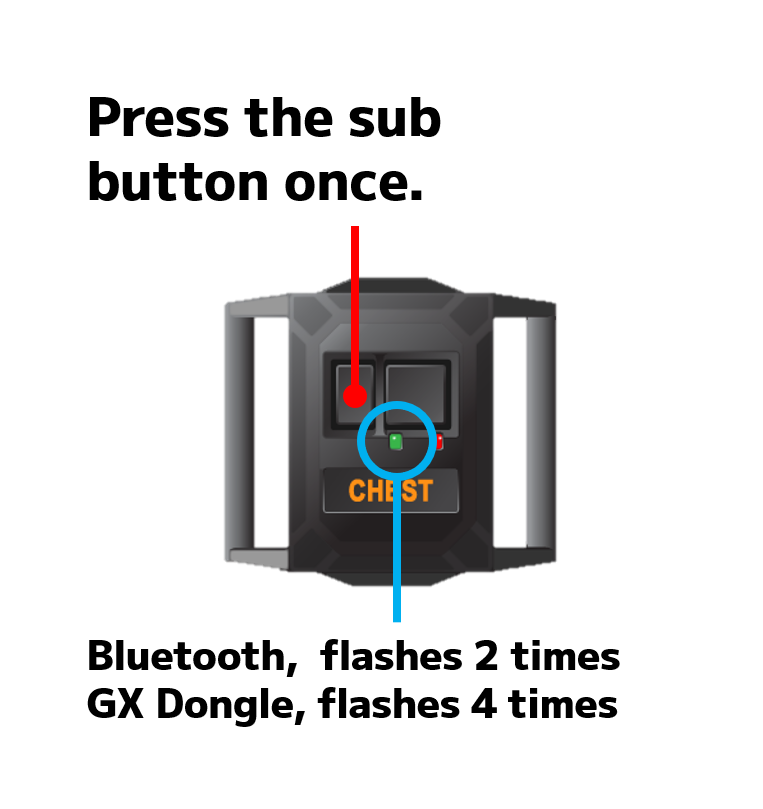

Click the sub button once during power on.

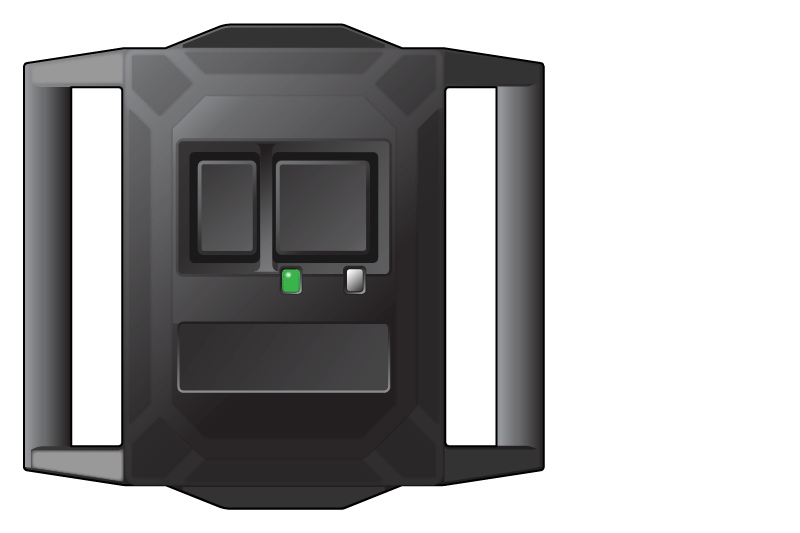

It is possible to check the current communication mode by the number of times the green LED flashes.

- When it flashes 2 times, it means “Bluetooth communication mode”
- When it flashes 4 times, it means “GX Dongle Mode”

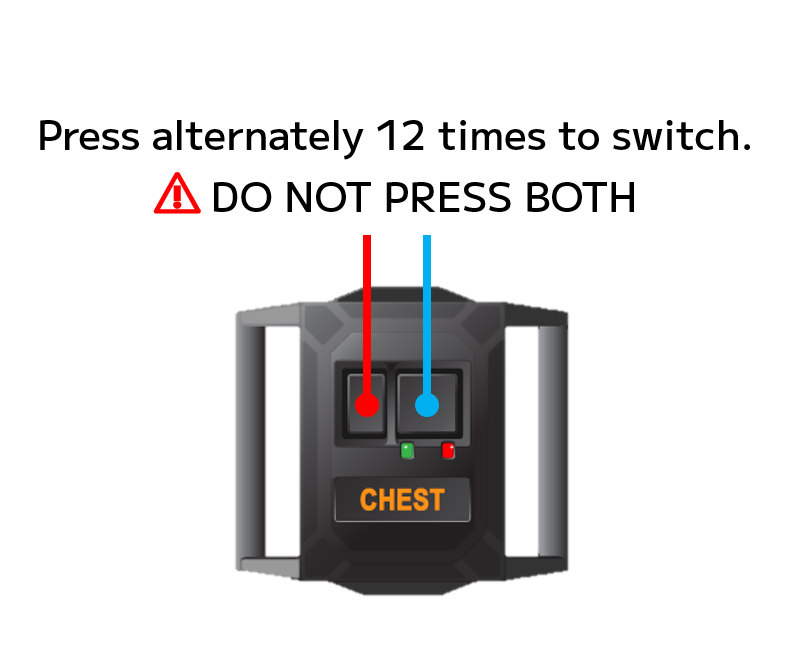

5.2.5 Switch the communication mode

Section titled “5.2.5 Switch the communication mode”

Click the main button and the sub button alternately a total of 12 times to switch between Bluetooth communication mode and GX Dongle mode.

6. Windows PC Settings

Section titled “6. Windows PC Settings”

Read Shiftall VR Manager online manual.

Instructions for use with VRChat  are also provided in the manual above.

7. FAQ・Troubleshooting

Section titled “7. FAQ・Troubleshooting”
Questions/symptomsAnswers/Causes and countermeasures
What is the product warranty period?The warranty period for this product is one year from the date of purchase. If you have made a reservation purchase, it is one year from the date of shipment of the product.
There is no store name or other information on the warranty card, is that okay?If you purchased from the Shiftall website, we know the date of purchase, so we do not fill in the warranty card.
If you purchased at a store, etc., you can receive a warranty within the warranty period without entering the store name and purchase date by presenting a document that proves the date of purchase.
can not turn onThe battery may be empty. Connect the charging USB cable and press the main button for about 3 seconds while the red LED lights and charging starts.
Also, after performing a forced shutdown (press and hold the main button for 30 seconds), connect the USB charging cable again.
If the power does not turn on after forced shutdown, remove the USB cable and then turn on the power.
If the above method does not improve the symptoms, please contact support.
It takes a long time to chargeIf you use a USB charger with an output of less than 5V/2.0A per port,It may not be able to charge, or may cause the USB charger to malfunction, overheat, or catch fire. Be sure to charge with a USB charger with an output of 5V/2.0A or more.
Red LED does not light up while chargingIs the USB charging cable firmly connected? Please check "Charging".
Charge the battery at a room temperature of 10°C to 30°C (50°F to 86°F).
When charging is complete, the red LED will turn off.
If the above method does not improve the symptoms, please contact support.
Red LED flashes fast while chargingThe sensor's charging system or battery may be malfunctioning. If symptoms occur frequently, please take a video showing the sensor status and contact support.
Fast periodic green LED flashing.If the green LED flashes faster than other sensors, and "HaritoraX2-Update" appears in the list of "App Settings" → "Sensor Update" in Shiftall VR Manager when the sensor is turned on, it is possible that the firmware update of the sensor has not completed properly and remains in standby state.
While the firmware update is in standby mode, normal shutdown, battery charging, connection with software, and communication mode switching do not work.
If the above is true, select "HaritoraX2 - Update" in "Sensor Update" of Shiftall VR Manager and perform the update again.
When the firmware update is completed successfully, the normal green LED will flash slowly.
Shorter operating timeIf the charging time and operating time become shorter, the internal battery may be exhausted.
Power turns off by itselfIf the power of the sensor unit continues for 20 minutes without being connected to the Shiftall VR Manager, the power of the sensor unit will automatically turn off.
Firmware update cannot be performed・If your PC does not have Bluetooth connection, you cannot perform firmware update. (Not available for dedicated communication dongle GX6/GX2)
・Use a compatible USB Bluetooth adapter.
・Make sure that the sensor mode is set to "Bluetooth communication mode". For mode switching and verification methods, refer to here.

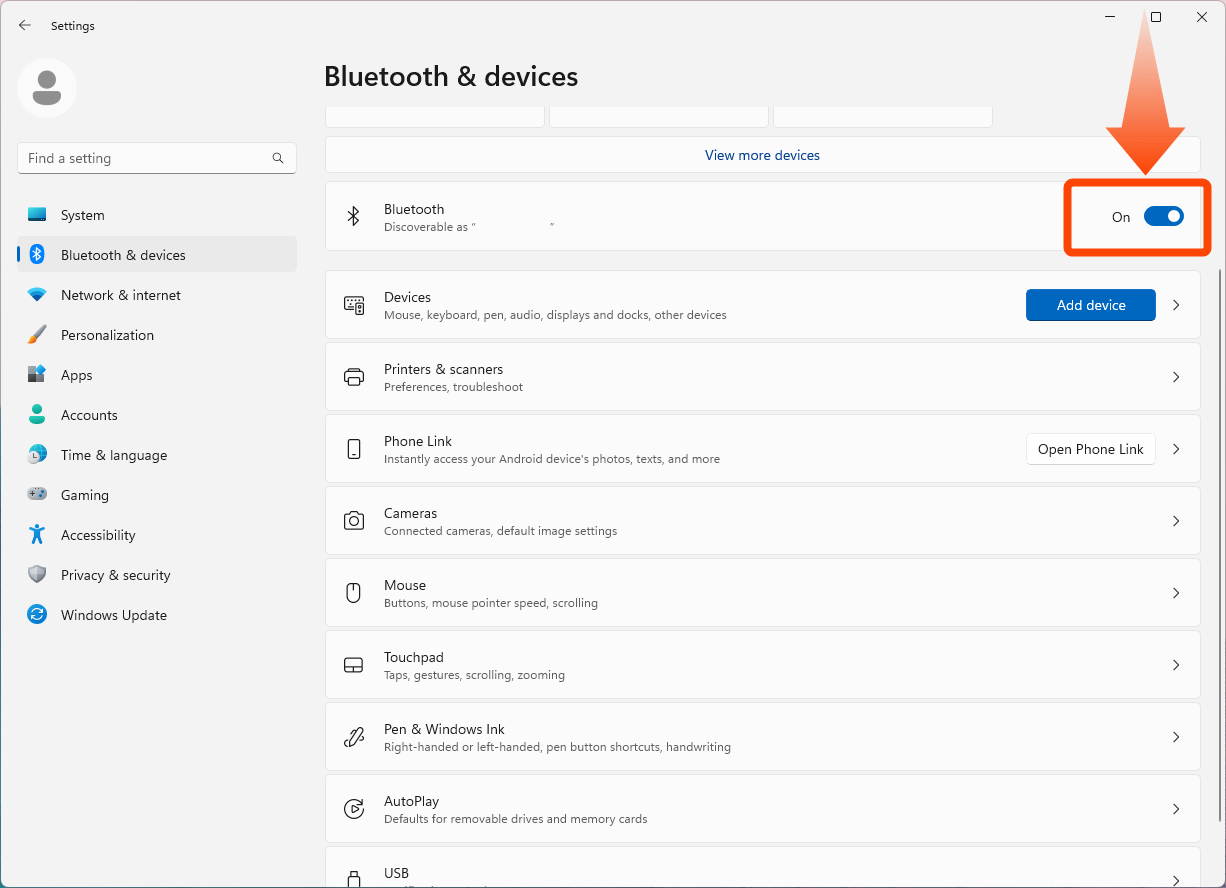

Bluetooth connection is not possiblePlease turn off Bluetooth once from Windows settings and turn it on again. 15 seconds after turning it on, try connecting with Shiftall VR Manager.

If you still can't connect, try restarting your PC once. When the Bluetooth surroundings are unstable, restarting is the best. If this does not solve the problem, we have prepared a troubleshooting page for when Bluetooth connection is not possible. Here Please read.
Bluetooth connection is possible, but it is easy to break off. immediately disconnectedIf the distance between the PC and the Bluetooth USB adapter is too close, the Bluetooth connection may be easily interrupted depending on the environment.
Use a USB extension cable like the one below and keep the Bluetooth USB dongle away from your PC.
USB extension cable here.
Also, the Bluetooth connection may be interrupted in the following cases.
・The body is positioned to cover the sensor
・The Bluetooth USB adapter is covered by an object, or there is a metal object nearby.
・Multiple other Bluetooth devices are connected at the same time
Connect the main unit to the Haritora configurator with the main unit close to the Bluetooth adapter without wearing it on your body, and check if the same symptoms occur.
I don't know the startup order of each applicationThe order in which the applications are started does not matter, but it is recommended to start the Haritora Configurator after the VR headset is recognized by SteamVR, connect Bluetooth, and then start the final application (VRChat, cluster, etc.).
You can also launch VRChat, enter the instance in VR mode, and then launch the Haritora Configurator to become FBT. It's useful to remember in case you need to enter the instance in a hurry.
Can't calibrate with controller trigger.HaritoraX 2 can be calibrated only within VR applications such as VRChat. Please note that calibration cannot be performed while the SteamVR menu or Oculus menu is displayed.
Please do the following within your VR application: With both hands holding the controller facing vertically downward, press the trigger on the controller 5 to 7 times in a row (calibration).
Instructions in the video here.
Keep spinning in a certain direction after only a few minutes of useNormally, the sensor reset operation is not necessary. When you fail to reset the sensor properly, the situation becomes worse.
"Drift" is the rotation of sensor tracking over time. The drift phenomenon can be suppressed by the sensor reset function and/or selecting appropriate tracking mode.
＜What is sensor reset?＞
This task is to compensate for the gyro and accelerometer sensors of the HaritoraX 2.
It is not necessary to perform it before use since it is performed before shipment from the factory. However, performing it when you feel that the sensor accuracy is not good may lead to the improvement of the accuracy.
  1. Remove the belt from the sensor.
  2. Turn on the sensor and place it on a hard, non-slip surface, such as a desk or floor, with the sensor button face up. Correct compensation cannot be performed on soft and unstable surfaces such as cloth, or where vibration is transmitted. In case of the leg sensors, place the knee sensors in a stable place also. They processed simultaneously.
  3. Once the sensor is in a stable position, After pressing the sub-button 10 times within 10 seconds (briefly press and release like a mouse click), quickly release your hand to keep the sensor stable.
  4. The sensor reset starts and the LED pattern changes in the following order: green LED blinks 2 or 4 times, green LED blinks violently, and green LED is lit.
  5. When the green LED is lit, point each side of the sensor (imagine a dice that wraps around the sensor) straight up on your desk for two seconds at a time. Support with your hands when facing unstably. For leg sensors, do the same for knee sensors. It may be completed without turning all 6 sides up.


  1. It is complete when the green LED changes to flashing. Attach the belt to the sensor.

Due to the characteristics of the IMU tracking device, the drift cannot be reduced to zero. Also, depending on the location you are using, there are environments where drift is likely to occur and environments where drift is unlikely to occur. In an environment where the geomagnetic field is stable, the drift phenomenon can be greatly reduced by setting the mode to Mode1 and completing the Mode1 calibration. Learn more about Mode1 calibration.
The geomagnetic status of the sensor displayed on the Shiftall VR Manager Home screen remains the same as Bad or Very Bad.Please check the [Negative environment/Environnement négatif/Nachteiliges Umgebung/Ambiente sfavorevole/Entorno negativo] and if applicable, avoid the condition as much as possible.
When I take a position with my feet thrown forward in VRChat, my feet are bent and it is like a gym sitting position.The player's height setting is basic, but in this situation,

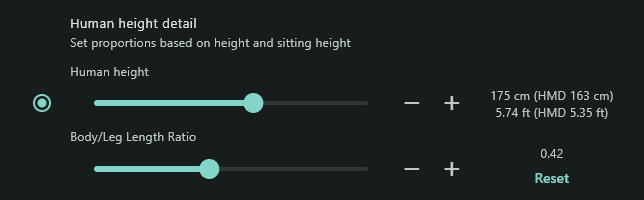

By adjusting the height setting in VRChat and the height setting in Shiftall VR Manager (), the legs will stretch out nicely. Set the height and sitting height, and adjust the torso/foot length ratio to find the right setting for your feet to bend. Click here for details.
Want to know the length of the belt and the corresponding body size.The data of belt length itself is not disclosed because it is meaningless because the corresponding body size depends on the length of the sensor body, size adjuster portion and hook and loop fastener sewn portion (no stretch here) and an elastic belt part.
The belt can be stretched to about 1.8 to 2 times its length, so it can be used for a wide range of body size. Please note that if you use the belt in a size close to maximum length, you may feel a little tight and uncomfortable, depending on the individual.
Chest (CHEST) max. 150 cm
Waist (HIP): 150 cm max.
Up to 100 cm above the knee
Below the knee (LEG) about 50 cm maximum
I would like to know which Bluetooth adapters have been confirmed to work.
I want to know which VR headsets have been tested to work.Operation-confirmed VR headset：MeganeX / MeganeX superlight 8K / VIVE / VIVE Pro / VIVE Pro2 / Valve index / Meta Quest 3 / Meta Quest 3S / Meta Quest Pro / Meta Quest 2 / PICO 4 / PICO 4 Ultra

For all other inquiries, please contact Shiftall Customer Support.

Shiftall Support Contact Form

https://forms.gle/rSsVoXCYSV8PXni19

8. 「HaritoraX 2」 Firmware Release Notes

Section titled “8. 「HaritoraX 2」 Firmware Release Notes”

All company names, system names, and product names mentioned in this manual, with the exception of Shiftall and HaritoraX, are registered trademarks or trademarks of their respective companies, and are not the property of our company.

In principle, “TM” and ”®” are omitted in the text and figures.
